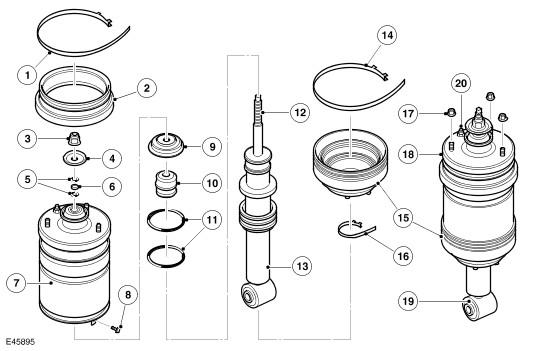

Damper Module - Air Suspension: Notes
| Item Number | Description |
|---|---|
| 1 | Strap* |
| 2 | Upper gaitor* |
| 3 | Self-locking nut* |
| 4 | Rebound washer* |
| 5 | O-ring - Damper rod* |
| 6 | Spacer - Damper rod* |
| 7 | Air spring* |
| 8 | Retaining pin - Air spring sleeve support* |
| 9 | Bump washer* |
| 10 | Spring aid* |
| 11 | O-ring - Air sleeve support (2 off)* |
| 12 | Damper rod |
| 13 | Damper assembly |
| 14 | Strap* |
| 15 | Lower gaitor* |
| 16 | Strap* |
| 17 | Self-locking nut (3 off) |
| 18 | Top mount assembly |
| 19 | Bush |
| 20 | Voss connector |
NOTE:
* Shows service items
The damper module comprises an air spring assembly, top mount and a damper assembly. The damper and air spring are only serviceable as complete assemblies.
