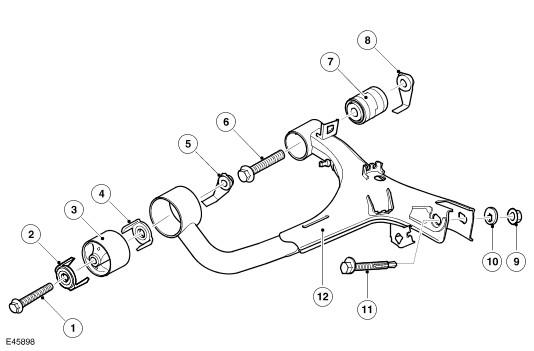

Upper Control Arm
| Item Number | Description |
|---|---|
| 1 | Bolt |
| 2 | Bumpstop clip |
| 3 | Forward bush |
| 4 | Bumpstop clip |
| 5 | Caged nut |
| 6 | Bolt |
| 7 | Rearward bush |
| 8 | Caged nut |
| 9 | Self-locking nut - upper knuckle ball joint |
| 10 | Eccentric washer - upper knuckle ball joint |
| 11 | Cam bolt - upper knuckle ball joint |
| 12 | Upper control arm |
The upper control arm locates in brackets on the upper surface of each chassis side member. The upper control arm assembly comprises the control arm and two bushes. The upper control arm is a pressed steel fabrication. Its outer end has two brackets with slotted holes which locate the upper ball joint of the knuckle. The ball joint is secured in the upper control arm with a cam bolt, eccentric washer and a self-locking nut. The cam bolt and the eccentric washer allow for the adjustment of the wheel camber.
Two fabricated tubular housings provide the location for the forward and rearward bushes. The bushes, which are pressed into the housings, locate between brackets on the chassis side members and are secured with bolts and caged nuts through metal inserts in the center of the bushes.
