Wheel Bearing And Wheel Hub: Removal
- Raise and support the vehicle.
- Remove the wheel knuckle. See WHEEL KNUCKLE .
- Remove the adjuster and return spring.
- Remove the primary brake shoe.
- Remove the hold-down spring and retaining pin.
- Pivot the shoe to release it from the spreader plate and return spring.
- Remove the spreader plate and spring.
- Remove the return spring.
- Remove the secondary brake shoe.
- Remove the hold-down spring and retaining pin.

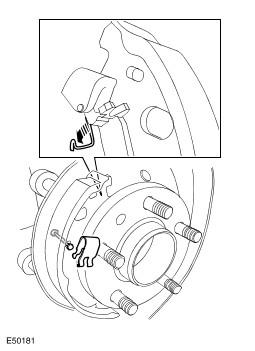

- Disconnect the parking brake cable retaining spring from the brake shoe lever.
- Using the special tools, remove the drive flange.
- Remove the brake disc dust shield.
- Remove the 3 screws.
- Using the special tools, remove the wheel bearing.
- Remove the circlip.
WARNING:
Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
