Rear Stabilizer Bar: Installation
- Install the stabilizer bar.
- Install the stabilizer bar bushing.
- Install the stabilizer bar bushing and clamps.

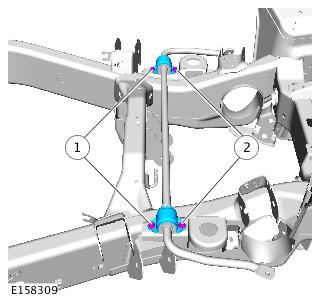

- Tighten fixings 1 to 62 Nm (46 lb.ft).
- Tighten fixings 2 to 62 Nm (46 lb.ft).
- Tighten fixings 1 to 62 Nm (46 lb.ft).
- Install the body mounts.
- Lower the body.
- Remove the stands.
- Install the body mount retaining bolts.
- Tighten the 8 retaining bolts to 133 Nm (98 lb.ft).
- Attach both stabilizer bar links.
- Tighten the nuts to 115 Nm (85 lb.ft).
- Install the wheels and tires.
- Tighten the wheel nuts to 140 Nm (103 lb.ft).
- Lower the vehicle.
- Install the spare wheel and tire.
- Install the rear bumper cover. Refer to Rear Bumper Cover .
CAUTION:
Make sure the stabilizer bar is correctly installed.
