Upper Arm Bushing: Removal
NOTE:
The bushings must be replaced in pairs, LH and RH sides.
- Raise and support the vehicle.
- Remove the wheels and tires.
- Remove the brake tube.
- Disconnect the 2 brake tube unions.
- Remove the brake hose clips and release the hoses.
- Release the brake tube from the clip.
- Disconnect the height sensor link.
- Release the wheel speed sensor lead.
- Remove the LH upper arm.

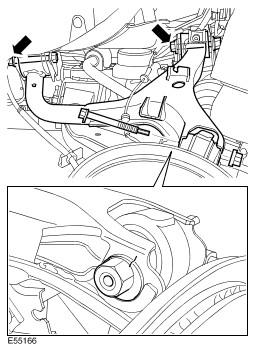

- Loosen the upper arm bolts.
- Mark the position of the bolt in relation to the upper arm.
- Disconnect the upper arm from the wheel knuckle.
- Remove the upper arm bolts.
- Remove the RH upper arm. See UPPER ARM .
- Mark the position of the bushing in relation to the upper arm.
- Using the special tools, remove and discard the rear upper arm front bushing.
- Using the special tools, remove and discard the rear upper arm rear bushing.
WARNING:
Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
CAUTION:
Always plug any open connections to prevent contamination.
