Power Steering: Notes

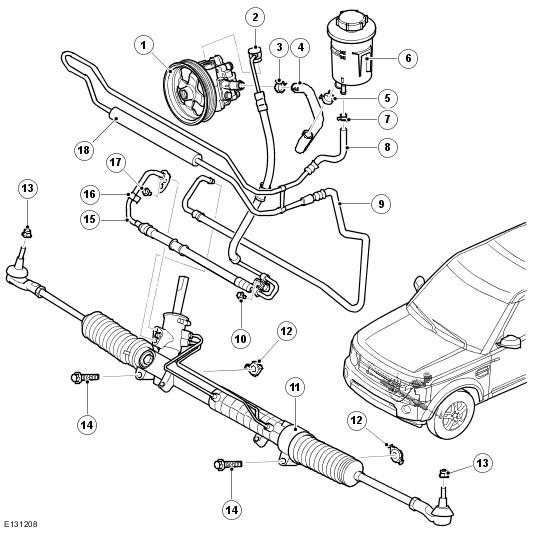

Component Location
| Item Number | Description |
|---|---|
| 1 | Power steering pump |
| 2 | Banjo bolt |
| 3 | Spring clip |
| 4 | Suction hose - reservoir to pump |
| 5 | Spring clip |
| 6 | Reservoir |
| 7 | Spring clip |
| 8 | Fluid cooler and hose assembly - fluid return |
| 9 | Hose assembly - Steering gear to cooler - return |
| 10 | Screw |
| 11 | Steering gear |
| 12 | Caged nut (2 off) |
| 13 | Self-locking nut (2 off) |
| 14 | Bolt (2 off) |
| 15 | Hose - pump to steering gear - pressure |
| 16 | Pipe clip |
| 17 | Screw |
| 18 | Cooler |
NOTE:
5.0L RHD shown.
