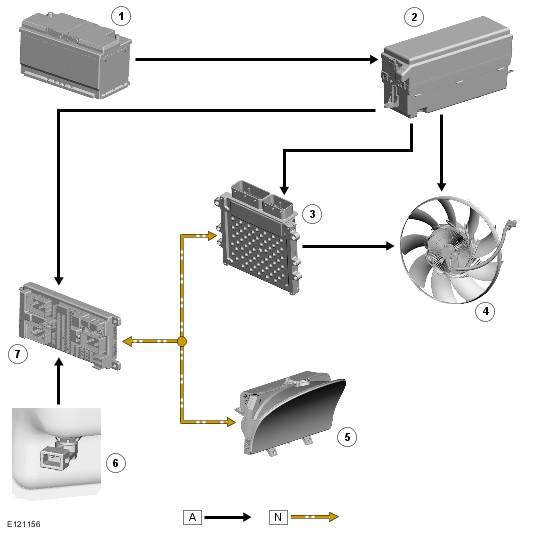

Control Diagram

GJ0013098Courtesy of JAGUAR CARS, INC.
Item Number Description
1 Battery
2 EJB (engine junction box)
3 ECM (engine control module)
4 Cooling fan
5 Instrument cluster
6 Coolant level sensor
7 CJB (central junction box)
NOTE: A = Hardwired; N = Medium speed controller area network (CAN).
