Refrigerant Lines

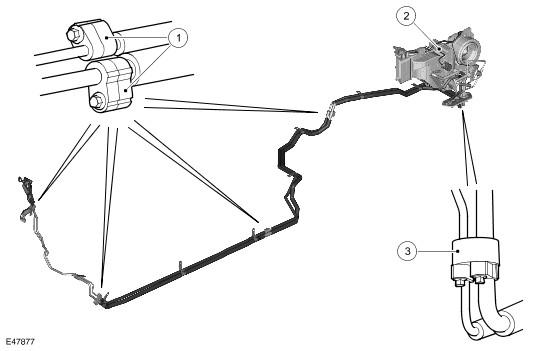

| Item Number | Description |
|---|---|
| 1 | In-line connections |
| 2 | Auxiliary climate control assembly |
| 3 | Connections to auxiliary climate control assembly |
The refrigerant lines are routed around the left rear wheel arch and along the left-hand (LH) underside of the vehicle, and connected to the front air conditioning (A/C) refrigerant system at the rear of the engine compartment. The refrigerant lines consist of sections of aluminum alloy pipes. All except the front section of the pipes are insulated with foam rubber sleeving.
