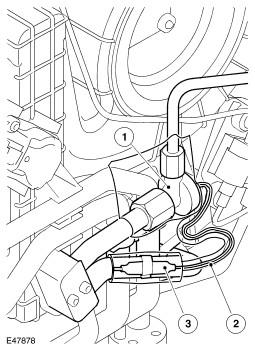

Thermostatic Expansion Valve

Courtesy of JAGUAR CARS, INC.

The thermostatic expansion valve meters the flow of refrigerant into the evaporator, to match the heat load of the air passing through the auxiliary climate control assembly.

The thermostatic expansion valve is installed in the inlet line to the evaporator. Liquid refrigerant flows through the valve to the evaporator. The restriction across the valve reduces the pressure and temperature of the refrigerant and changes it to a fine spray, which improves the evaporation process. Valve opening is controlled by the pressure in a capillary tube containing a temperature sensitive fluid. One end of the capillary tube is connected to a diaphragm housing on the thermostatic expansion valve, the other end of the capillary tube is sealed and attached to the refrigerant outlet line of the evaporator. As the temperature of the refrigerant leaving the evaporator changes, a corresponding change of capillary tube pressure and valve opening are produced. The warmer the refrigerant leaving the evaporator becomes, the greater the volume of refrigerant allowed through the valve.
