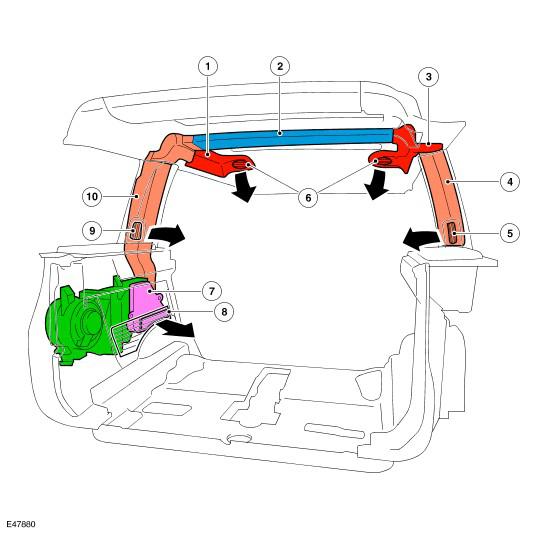

Distribution System
| Item Number | Description |
|---|---|
| 1 | Second row left face level air duct |
| 2 | Cross-car air duct |
| 3 | Second row right face level air duct |
| 4 | Right C pillar air duct |
| 5 | Third row right face level register |
| 6 | Second row face level registers |
| 7 | Third row foot level air duct |
| 8 | Third row foot level registers |
| 9 | Third row left face level register |
| 10 | Left C pillar air duct |
The distribution system consists of a network of air ducts that supply air from the outlets of the auxiliary climate control assembly to registers installed in:
- The headliner, to the left and right of the second row interior lamp, to provide face level ventilation for second row seat occupants
- The left and right C pillar finishers, to provide face level ventilation for third row seat occupants
- The loadspace left side molding, to provide foot level ventilation for third row passengers.
The registers can all be adjusted to control the direction and volume of the air flow.
