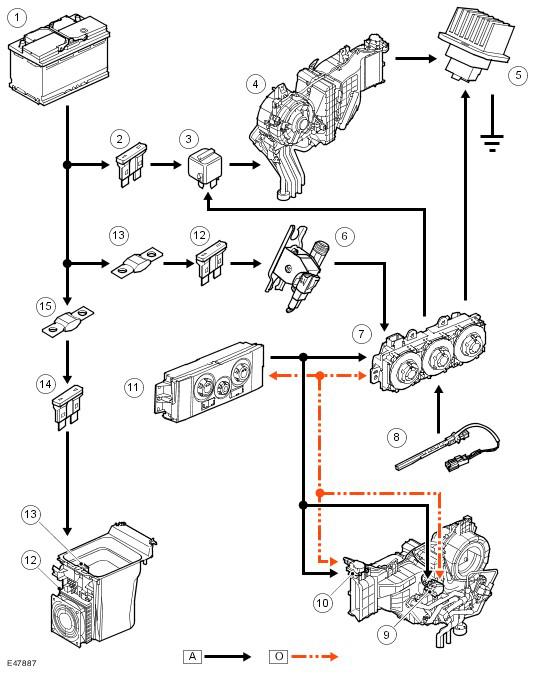

Control Diagram
NOTE:
A = Hardwired connection; O = LIN bus
| Item Number | Description |
|---|---|
| 1 | Battery |
| 2 | Fuse 22B, central junction box (CJB) |
| 3 | Rear blower relay |
| 4 | Rear blower |
| 5 | Rear blower control module |
| 6 | Solenoid valve |
| 7 | ACCM |
| 8 | Evaporator temperature sensor |
| 9 | Temperature blend door motor |
| 10 | Distribution door motor |
| 11 | ATC module |
| 12 | se 51P, CJB |
| 13 | Fusible link, 17E, BJB |
