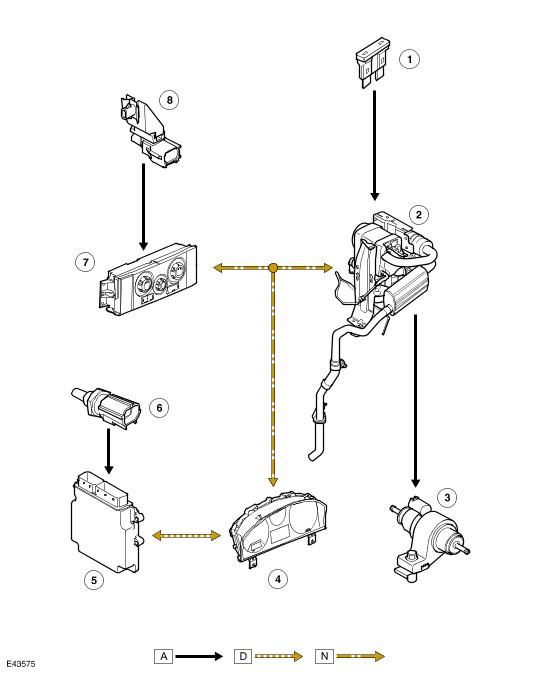

Control Diagram
NOTE:
A = Hardwired connections; D = High speed controller area network (CAN) bus; F = RF transmission; N = Medium speed controller area network (CAN) bus; P = MOST bus
| Item Number | Description |
|---|---|
| 1 | Fuse 28E, battery junction box (BJB) |
| 2 | FFBH |
| 3 | Auxiliary fuel pump |
| 4 | Instrument cluster |
| 5 | engine control module (ECM) |
| 6 | ECT sensor |
| 7 | ATC module |
| 8 | Ambient air temperature sensor |
