Heating And Ventilation: Notes
NOTE:

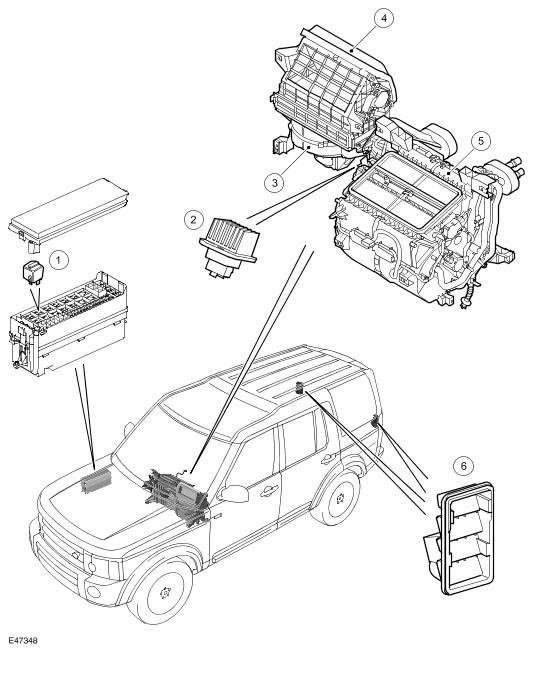

Right-hand drive (RHD) installation shown, left-hand drive (LHD) similar
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
Blower relay |
| 2 |
Blower control module |
| 3 |
Blower |
| 4 |
Air inlet duct |
| 5 |
Heater |
| 6 |
Ventilation outlets |
