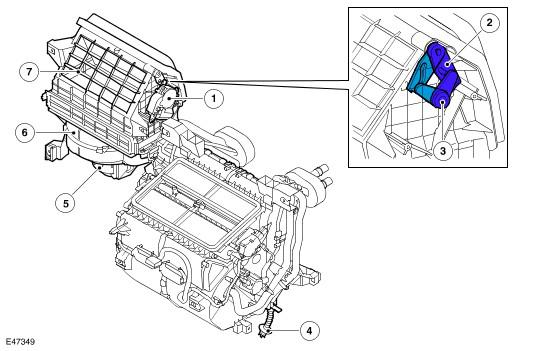

Air Inlet Duct

Courtesy of JAGUAR CARS, INC.

The air inlet duct is installed behind the instrument panel, on the front passenger side, and connected between the plenum chamber below the windshield and the heater.

The plenum chamber is formed by the upper and lower cowl and a plenum molding. Grilles in the plenum molding allow fresh air into the plenum chamber. From the plenum chamber, the air passes through a water separator and into the fresh air inlet of the air inlet duct.

The air inlet duct incorporates a grille to provide the inlet for recirculated air from the vehicle interior. The air inlet duct also accommodates:

• The cabin air filter. Refer to Air Distribution and Filtering information.
• The blower.
• The blower control module.

The outlet from the air inlet duct forms the rear wall of the heater, enclosing the evaporator and incorporating the two evaporator drain outlets. Drain tubes connect the evaporator drain outlets to the transmission tunnel, to direct the water that condenses on the evaporator overboard.

A recirculation door is installed between the fresh and recirculated air inlets, to control the source of incoming air. A lever on the recirculation door is driven by the recirculation door motor. Operation of the recirculation door motor is automatically controlled by the automatic temperature control (ATC) module and manually controlled by a switch on the automatic temperature control (ATC) module control panel. Refer to Control Components information.

Fresh or recirculated air enters the air inlet duct and passes through the cabin air filter to the hub of the blower. From the blower, the air flows to the outlet of the air inlet and into the heater. The blower, and ram effect from the forward motion of the vehicle, forces the air through the air inlet duct.

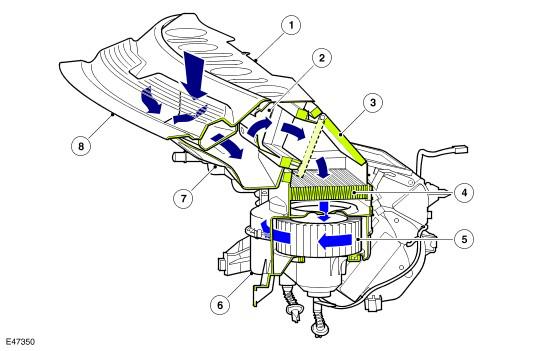

Air Flow Through Air Inlet Duct

Courtesy of JAGUAR CARS, INC.
