Steering Linkage
>>
Description & Operation
>>
Steering Linkage
>>
Notes

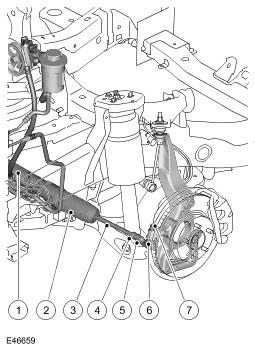

Steering Linkage: Notes
Courtesy of JAGUAR CARS, INC.
Item Number
Description
1
Steering gear
2
Steering gear boot
3
Tie rod
4
Locknut
5
Tie rod end
6
Ball joint
7
Self-locking nut
Courtesy of JAGUAR CARS, INC.
