Description & Operation: Engine: Introduction

The 5.0L NA (naturally aspirated) gasoline engine is a liquid cooled V8 unit featuring direct fuel injection, four overhead camshafts and four valves per cylinder. All four camshafts incorporate variable camshaft timing (VCT). The intake camshafts and valves also incorporate CPS (camshaft profile switching).

The main structural components of the engine are all manufactured from aluminum alloy. The engine is built around a very stiff, lightweight, enclosed V, deep skirt cylinder block. A structural windage tray is bolted to the bottom of the cylinder block to further improve the block stiffness, minimize noise, vibration and harshness (NVH) and help reduce oil foaming. To further enhance the stiffness of the lower engine structure, a heavily ribbed sump is installed. The sump also helps to reduce engine noise.

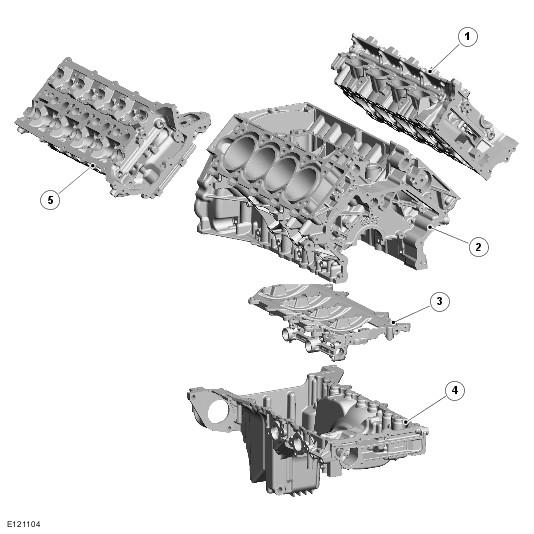

Engine Structure

Courtesy of JAGUAR CARS, INC.
