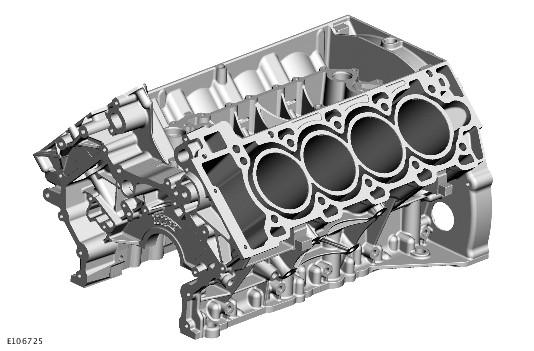

Cylinder Block

Courtesy of JAGUAR CARS, INC.

The cylinder block is a 90 degree configuration with cast-in iron cylinder liners and an open deck die-cast coolant jacket. The low volume coolant jacket gives good warm-up times and low piston noise levels. The longitudinal flow design of the coolant jacket, with a single cylinder head coolant transfer port in each bank, provides good rigidity and head gasket sealing.

Cylinder Numbering

The cylinders are numbered as shown below, with cylinders 1 and 2 at the front of the engine.

Courtesy of JAGUAR CARS, INC.

Engine Data Location

Courtesy of JAGUAR CARS, INC.

Engine data is marked on the cylinder block at the rear of the right-hand (RH) cylinder bank.
