Exhaust Manifold
NOTE:

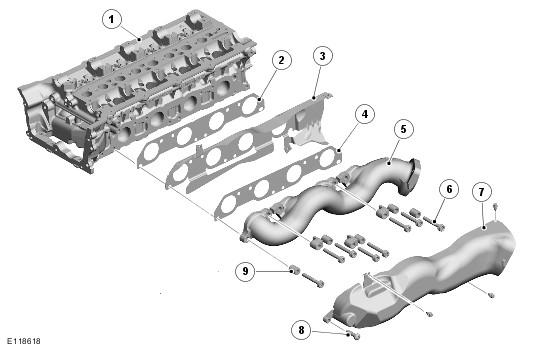

LH (B bank) installation shown, RH (A bank) installation similar.
| Item Number | Description |
|---|---|
| 1 | Cylinder head |
| 2 | Gasket |
| 3 | Heat shield |
| 4 | Gasket |
| 5 | Exhaust manifold |
| 6 | Bolt (8 off) |
| 7 | Heat shield |
| 8 | Bolt (4 off) |
| 9 | Spacer (8 off) |
The high SiMo (silicon molybdenum) cast iron exhaust manifolds are unique for each cylinder bank. Each exhaust manifold installation includes two metal gaskets and two heat shields. Spacers on the securing bolts allow the manifolds to expand and contract with changes of temperature while maintaining the clamping loads.
