Crankshaft Pulley: Removal

NOTE: Removal steps in this procedure may contain installation details.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the battery ground cable. Refer to SPECIFICATIONS .
    2. WARNING: Make sure to support the vehicle with axle stands.
  2. Raise and support the vehicle.
  3. Remove the radiator.

    Refer to RADIATOR .

  4. Remove the starter motor.

    Refer to STARTER MOTOR .

  5. GJ0012525
  6. GJ0012520
  7. Install the special tool.

    Torque: 25 Nm

    Locking Tool (303-1448)

    GJ0012194

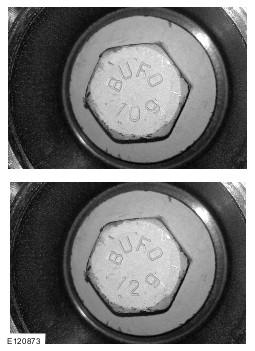

    8. CAUTION: Before removing the crankshaft pulley bolt, note the numbers on the bolt head. If the bolt head shows 10.9, the bolt must be removed counter clockwise. If the bolt head shows 12.9, the bolt must be removed clockwise. Failure to follow this instruction may result in damage to the crankshaft.
  8. Note the markings on the crankshaft pulley bolt.
    GJ0012781
  9. G11606906
  10. Install the special tools.

    Crankshaft Damper Remover/Installer (303-1437)

    Crankshaft Damper Bolt Remover/Installer (303-1438)

    GJ0012783

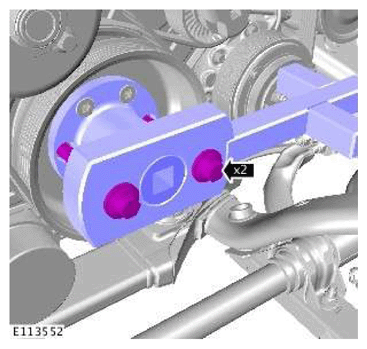

  11. Torque: 25 Nm
    G11606908
  12. Remove the special tool.

    Locking Tool (303-1448)

    G11607275
    13. NOTE: The graphic shows the tool position for LH thread only, RH thread will be the opposite.
  13. Using a suitable stand, support the special tool.
    GJ0012785
    14. NOTE: The graphic shows the step for LH thread only, RH thread will be the opposite.
  14. GJ0012901
  15. Install the special tool.

    Locking Tool (303-1448)

    G11607275
  16. Remove the special tool bolts.
    G00615721
    17. NOTE: If the crankshaft damper is fitted with an early RH thread crankshaft bolt then the pulley can be removed with a standard puller.
  17. Remove the special tool.
    GJ0012783

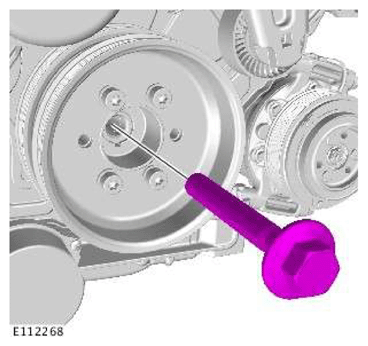

  18. NOTE: Discard the bolt after removal.
    G11606913

    Remove the crankshaft pulley bolt.

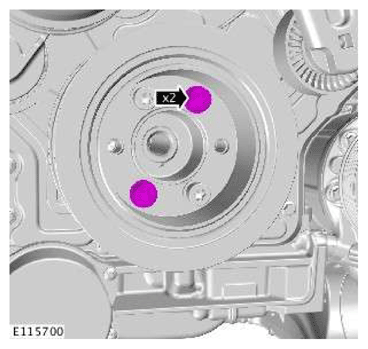

  19. Remove 2 pulley center bolts
    G11606914
  20. Install the special tool.

    Crankshaft Damper Removal/Installation Stud (303-1440)

    GJ0012797
  21. Install the special tool.

    Crankshaft Damper Remover/Installer Body (303-1441)

    GJ0012789
  22. Install the special tool.

    Crankshaft Damper Removal Plate (303-1439)

    GJ0012790
  23. Install the special tool centre to release the crankshaft pulley.
    GJ0012791
    24. NOTE: Make sure to clean the threads in the end of the crankshaft and that the crank nose is free of any foreign materials.
  24. Remove the crankshaft pulley and special tool.
    GJ0012792
  25. GJ0012793
  26. GJ0012794
