Cylinder Head LH: Removal

NOTE: Some illustrations may show the engine removed for clarity.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the battery for access. Refer to BATTERY information.
    2. WARNING: Make sure to support the vehicle with axle stands.
  2. Raise and support the vehicle.
  3. Refer to: CAMSHAFT LH .
  4. Refer to: EXHAUST MANIFOLD LH .
  5. See Figure
    GJ0012080
  6. See Figure
    GJ0012081
  7. See Figure
    GJ0012082
    8. CAUTION: Be prepared to collect escaping coolant.
  8. See figure
    GJ0012083
    9. NOTE: Clamp the hose to minimize coolant loss.
  9. See figure
    GJ0012084
  10. See Figure
    GJ0012085
    11. CAUTION: Discard the seals.
  11. See Figure
    GJ0012086
  12. See Figure
    GJ0012087
    13. CAUTION: Make sure that all openings are sealed. Use new blanking caps.
  13. See Figure
    GJ0012088
    14. CAUTION: If a new cylinder head has been installed then new tappets must be installed.
    CAUTION: If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.
    NOTE: Left-hand shown, right-hand similar.
  14. See Figure
    GJ0012089

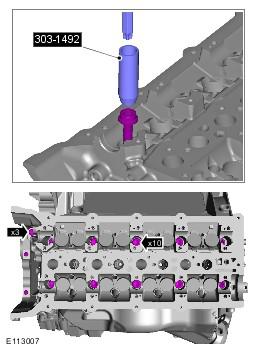

  15. See Figure
    GJ0012090
  16. See Figure
    GJ0012091
