Cylinder Head RH: Removal

NOTE: Removal steps in this procedure may contain installation details.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the battery ground cable. Refer to SPECIFICATIONS information.
    2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  2. Raise and support the vehicle.
  3. Refer to: INTAKE MANIFOLD .
  4. Refer to: CAMSHAFT RH .
  5. Refer to: EXHAUST MANIFOLD RH .
    6. CAUTION: Be prepared to collect escaping coolant.
  6. See figure
    GJ0012083
  7. See Figure
    GJ0012129
  8. See Figure
    GJ0012130
    9. CAUTION: Discard the seal.
    CAUTION: LH illustration shown, RH is similar.
    NOTE: Engine shown removed for clarity.
  9. See figure
    GJ0012131
  10. See Figure
    GJ0012082
  11. See Figure
    GJ0012132
  12. See Figure
    GJ0012133
    13. NOTE: Clamp the hose to minimize coolant loss.
  13. See figure
    GJ0012084
  14. See Figure
    GJ0012085
    15. CAUTION: Discard the seals.
  15. See figure
    GJ0012086
  16. See Figure
    GJ0012134

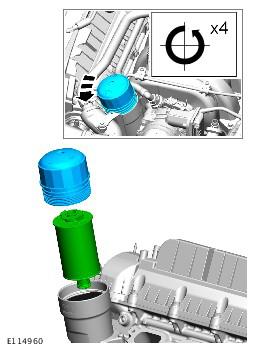

    17. NOTE: Remove and discard the O-ring seal.
  17. See figure
    GJ0012135
    18. NOTE: Discard the gasket.
  18. See figure
    GJ0012136
  19. See Figure
    GJ0012137
    20. CAUTION: If a new cylinder head has been installed then new tappets must be installed.
    CAUTION: If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.
  20. See figure
    GJ0012089

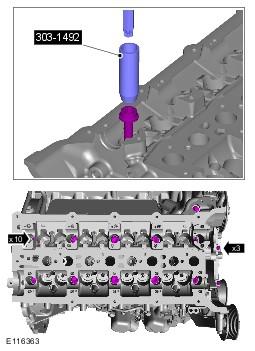

    21. CAUTION: Discard the bolts.
  21. See figure
    GJ0012138
    22. NOTE: Discard the gasket.
  22. See figure
    GJ0012139
