Engine Mount LH: Removal

NOTE: Some illustrations may show the engine removed for clarity.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable. Refer to SPECIFICATIONS information.
    2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  2. Raise and support the vehicle.
  3. Refer to CATALYTIC CONVERTER LH information.
  4. Remove the LH front wheel and tire.
  5. See Figure
    GJ0012098
  6. 1See Figure
    GJ0012099
  7. See Figure
    GJ0012100
  8. See Figure
    GJ0012101

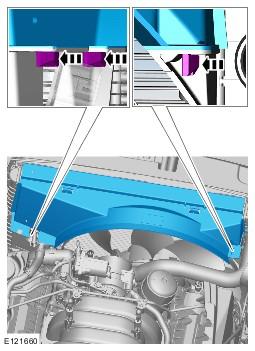

  9. See Figure
    GJ0012102
    10. CAUTION: Always protect the cooling pack elements to prevent accidental damage.
    NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  10. See figure
    GJ0012103
    11. CAUTION: Use a wooden block to protect the oil pan when supporting the engine.
  11. Using a suitable hydraulic jack, raise and support the engine.

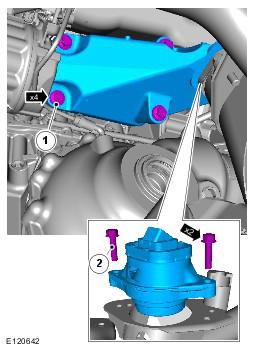

  12. See Figure
    GJ0012104
