Engine Mount RH: Installation

  1. Torque:

    1 45 Nm

    1 60°

    2 56 Nm

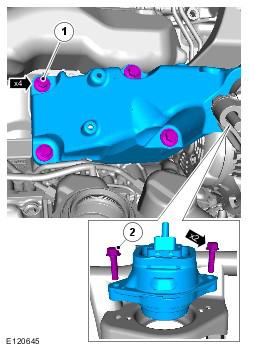

    GJ0012112
  2. Torque: 100 Nm
    GJ0012111
    3. CAUTION: Always protect the cooling pack elements to prevent accidental damage.
    NOTE: The thread is right handed.
    NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  3. Viscous Coupling Wrench (303-1142)

    Viscous Coupling Holding Tool (303-1143)

    Torque: 65

    GJ0012103
  4. See Figure
    GJ0012110
  5. See Figure
    GJ0012108
  6. See Figure
    GJ0012109
  7. See Figure
    GJ0012107
  8. See Figure
    GJ0012105
  9. See Figure
    GJ0012106
  10. Install the RH front wheel and tire.
  11. Refer to AIR CLEANER OUTLET PIPE T-CONNECTOR information.
  12. Refer to EXHAUST SYSTEM information.
  13. Connect the battery ground cable. Refer to SPECIFICATIONS information.
