Timing Cover: Installation
-
- Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.
-
- Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.
- Torque: 12 Nm
- Torque: 12 Nm
- Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown, and tighten the bolts within 7 minutes.
- Install the bolts, but do not tighten fully at this stage.

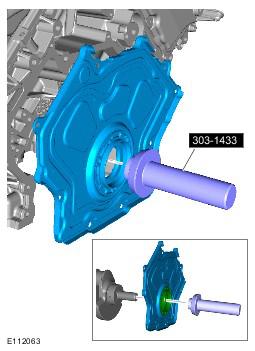

Lower Timing Cover Alignment tool (303-1433)
- Torque:
M6 12 Nm
M8 20 Nm
- Remove the special tools.
- Torque: 12 Nm
- Torque: 12 Nm
- Torque: 25 Nm
- Torque: 12 Nm
- Torque: 40 Nm
- See Figure
- Torque: 25 Nm
- Torque: 25 Nm
- See Figure
- See Figure
- See Figure
- Refer to: VALVE COVER LH .
- Refer to: VALVE COVER RH .
- Torque: 12 Nm
- Refer to: CRANKSHAFT PULLEY .
- Refer to: COOLING SYSTEM DRAINING, FILLING AND BLEEDING
- Connect the battery ground cable. Refer to SPECIFICATIONS information.
- Check and top up the engine oil.
CAUTION:
Make sure that the mating faces are clean and free of foreign material.
CAUTION:
Make sure that the mating faces are clean and free of foreign material.
NOTE:
Tighten the bolts in the indicated sequence.
NOTE:
Tighten the bolts in the indicated sequence.
CAUTION:
Make sure that the mating faces are clean and free of foreign material.
CAUTION:
Make sure that the mating faces are clean and free of foreign material.
NOTE:
Install the bolt finger tight before final tightening.
NOTE:
Install a new seal.
