Cylinder Block Oil Gallery Plug: Removal

NOTE: Removal steps in this procedure may contain installation details.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Disconnect the battery ground cable. Refer to SPECIFICATIONS information.
    2. WARNING: Make sure to support the vehicle with axle stands.
  2. Raise and support the vehicle.
  3. Refer to CATALYTIC CONVERTER RH information.
  4. See Figure
    GJ0012106
  5. See Figure
    GJ0014430
  6. See Figure
    GJ0014431
  7. Torque: 10 nm
    GJ0014432

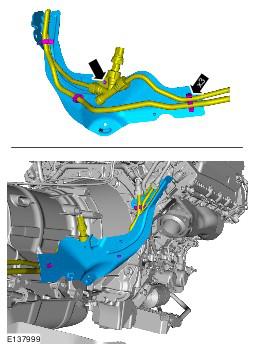

  8. Torque: 10 Nm
    GJ0014433
  9. Torque: 12 Nm
    GJ0014434
  10. See Figure
    GJ0014435
    11. CAUTION: Make sure that the mating faces are clean and free of corrosion and foreign material.
  11. Torque:

    Stage 1: 40 Nm

    Stage 2: 180°

    GJ0014436
