Fuel Pump Camshaft: Installation

    CAUTION: Make sure that the mating faces are clean and free of foreign material.
  1. See figure
    GJ0014451
    2. CAUTION: Take extra care not to damage the mating faces.
  2. Torque: 12 Nm
    GJ0014450
  3. Torque: 21 Nm
    GJ0012878
  4. Torque: 12 Nm
    GJ0014449

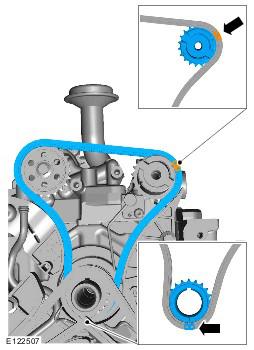

  5. Install the lower timing chain making sure the coloured chain links align correctly with the fuel rail high-pressure fuel pumps camshaft and crankshaft sprocket markings.
    GJ0012886
    6. CAUTION: Make sure that the tensioner spring is correctly located.
  6. Torque: 21 Nm
    GJ0012877
  7. Refer to: OIL PAN EXTENSION .
  8. Refer to SPECIFICATIONS information.


    CAUTION: Make sure that the mating faces are clean and free of foreign material.
  1. See figure
    GJ0014451
    2. CAUTION: Take extra care not to damage the mating faces.
  2. Torque: 12 Nm
    GJ0014450
  3. Torque: 21 Nm
    GJ0012878
  4. Torque: 12 Nm
    GJ0014449

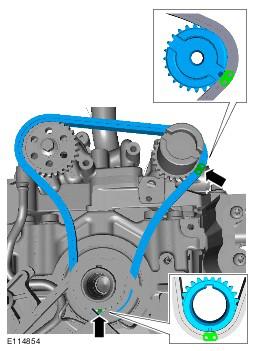

  5. Install the lower timing chain making sure the coloured chain links align correctly with the fuel rail high-pressure fuel pumps camshaft and crankshaft sprocket markings.
    GJ0012885
    6. CAUTION: Make sure that the tensioner spring is correctly located.
  6. Torque: 21 Nm
    GJ0012876
  7. Refer to: OIL PAN EXTENSION .
  8. Connect the battery ground cable. Refer to SPECIFICATIONS information.
