Engine (V8 5.0L Petrol): Installation: Engine

Special Tool(s)

	303-1142 Viscous Coupling Wrench
	303-1143 Viscous Coupling Holding Tool

NOTE: This step requires the aid of another technician.

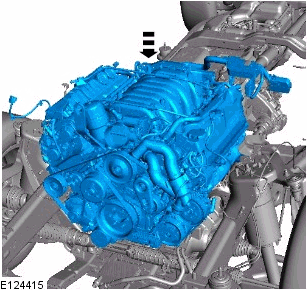

1. See figure
2. Torque: 40 Nm
3. See Figure
CAUTION: Only rotate the crankshaft clockwise.
4. • Make sure that the alignment mark is visible through the inspection hole on installation of the first torque converter bolt.

     Torque: 63 Nm

5. Torque: 100 Nm
6. Torque: 100 Nm
7. Torque: 25 Nm
8. Torque: 25 Nm
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
9. See figure
10. Torque: 10 Nm
11. Torque: 10 Nm
12. Torque: 25 Nm
13. Torque: 25 Nm
14. Torque: 12 Nm
15. Torque: 10 Nm
16. Torque:

    M8 Bolt 25 Nm

    M6 Bolt 10 Nm

17. • Remove and discard the 4 O-ring seals.

      Torque:

      M8 Nut 9 Nm

      M8 Bolt 25 Nm

      M6 bolt 10 Nm

WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.
CAUTION: Make sure that all openings are sealed. Use new blanking caps.
18. Torque: 25 Nm
19. See Figure
CAUTION: Be prepared to collect escaping coolant.
20. See figure
21. Torque: 22 Nm
22. Torque: 22 Nm
CAUTION: Always protect the cooling pack elements to prevent accidental damage.
23. Viscous Coupling Wrench (303-1142)

    Viscous Coupling Holding Tool (303-1143)

    Torque: 65 Nm

24. See Figure
25. See Figure
26. See Figure
27. See Figure
28. Refer to: BODY - (PETROL)
29. Using the approved diagnostic equipment, clear the powertrain control module (PCM) adaptions.
