Low And High Pressure Fuel Lines

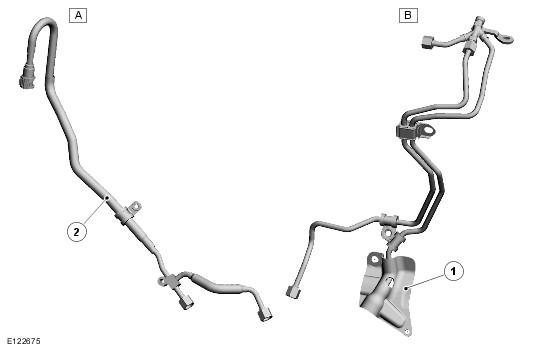

| Item Number | Description |
|---|---|
| A | LP fuel lines |
| B | HP fuel lines |
| 1 | Acoustic cover |
| 2 | Heat reflective and insulation sleeves |
The LP fuel line connects the HP fuel pumps to the fuel delivery line from the fuel tank and lines system. A quick release connector at the start of the LP fuel line is held in a clip integrated into the left-hand (LH) ignition coils cover. P-clips secure the LP fuel line to the rear of each cylinder head and to the right-hand (RH) side of the cylinder block. A heat reflective and insulation sleeves are installed on the LP fuel line where it runs behind the right-hand (RH) exhaust manifold.
The HP fuel lines connect the HP fuel pumps to the right-hand (RH) fuel rail and the crossover tube. Two P-clips and a pipe clamp attach the HP fuel lines to the cylinder block and the right-hand (RH) cylinder head respectively. An integral bracket on the front HP fuel line is attached to a stud on the front-upper right-hand (RH) timing cover. An acoustic cover is installed on the bottom of the front HP fuel line.
