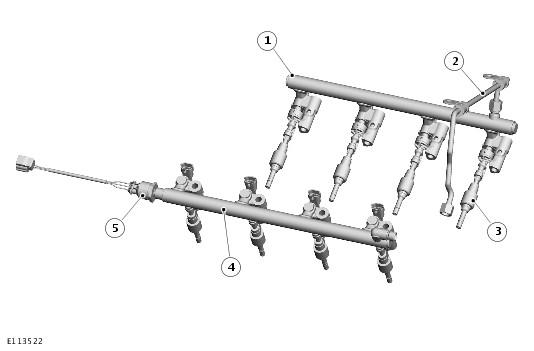

Fuel Rails And Crossover Tube
| Item Number | Description |
|---|---|
| 1 | LH fuel rail |
| 2 | Crossover tube |
| 3 | Fuel injector |
| 4 | RH fuel rail |
| 5 | FRP sensor |
The fuel rails and crossover tube are made from stainless steel. Bolts attach each fuel rail to the related cylinder head. The crossover tube connects the front high pressure line to the left-hand (LH) fuel rail, which ensures there is equal pressure in the two fuel rails. Two P-clips attach the crossover tube to the intake manifold.
The rear of the right-hand (RH) fuel rail incorporates a threaded boss for installation of the fuel rail pressure (FRP) sensor.
