Component Location - Sheet 2 Of 3

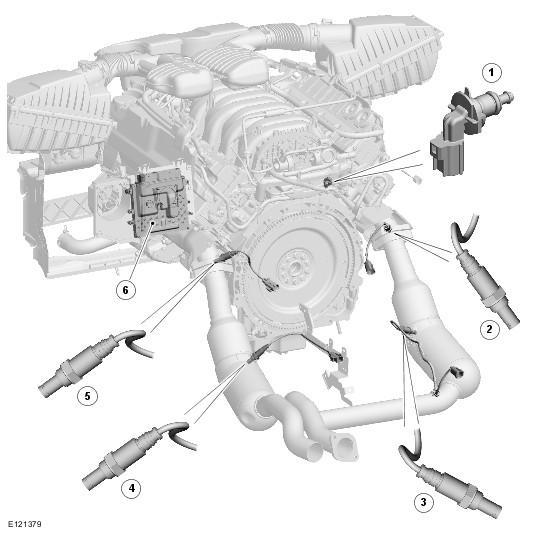

GJ0013071Courtesy of JAGUAR CARS, INC.
Item Number Description
1 ECT sensor (ECT 1)
2 Upstream HO2S (heated oxygen sensor)
3 Downstream HO2S
4 Downstream HO2S
5 Upstream HO2S
6 ECM (engine control module)
