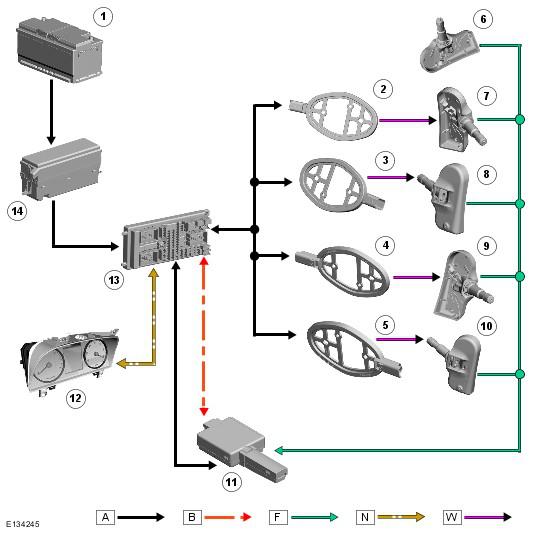

Control Diagram
NOTE:
A
= Hardwired; B
= K-Bus; F
= RF Transmission; N
= Medium Speed CAN Bus; W
= LF Transmission
| Item Number | Description |
|---|---|
| 1 | Battery |
| 2 | RH rear initiator |
| 3 | LH rear initiator |
| 4 | RH front initiator |
| 5 | LH front initiator |
| 6 | Spare tire pressure sensor |
| 7 | RH rear tire pressure sensor |
| 8 | LH rear tire pressure sensor |
| 9 | RH front tire pressure sensor |
| 10 | LH front tire pressure sensor |
| 11 | TPMS RF receiver |
| 12 | Instrument Cluster |
| 13 | EJB |
| 14 | EJB |
