Raising the Rear of the Vehicle
Select 'P' - PARK on automatic transmission selector.
WARNING:
Always chock the front wheels when jacking the rear of the vehicle.
Position the lifting pad of the hydraulic jack under the centre of the rear cross member as shown.
CAUTION:
Take care that the lifting pad of the jack is of a suitable size to avoid damaging the heat shield. It is not advisable to use a spacer block between the lifting pad and the rear cross member as this may result in some vehicle instability.

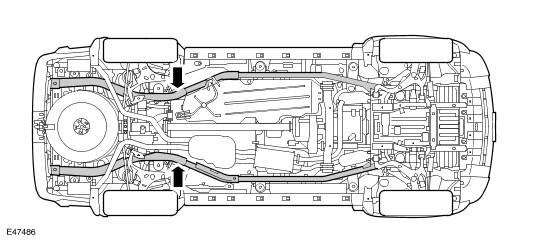

With vehicle raised to desired height, position axle stands at positions shown.
CAUTION:
Position suitable material between axle stands and longitudinal members to prevent damage to the longitudinal members.
Carefully lower jack until vehicle rests on axle stands.
WARNING:
Before commencing work on underside of vehicle, ensure that axle stands are correctly positioned and vehicle is securely supported.
Reverse procedure when removing vehicle from stands.
