Raising Vehicle - One Wheel/side

Apply the parking brake.

Select 'P' - PARK on automatic transmission selector.

WARNING: Always chock the wheels which are not to be raised.

Courtesy of JAGUAR CARS, INC.

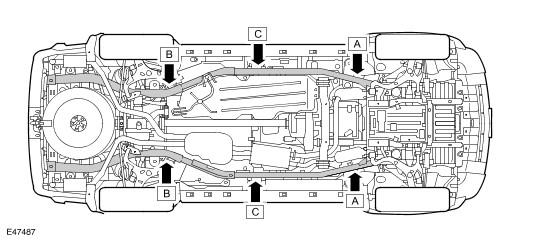

One front wheel - position lifting pad of hydraulic jack beneath longitudinal member on the side to be raised at Point 'A'
One rear wheel - position lifting pad of jack beneath longitudinal member on the side to be raised at Point 'B'
Front and rear wheels - ONE SIDE - position lifting pad of jack beneath longitudinal member on the side to be raised at Point 'C'

NOTE: Point 'C' is in line with number 3 body mounting.

Courtesy of JAGUAR CARS, INC.

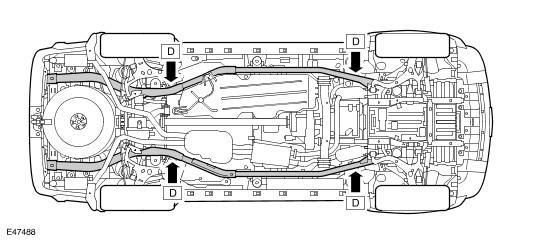

With vehicle at desired height, position axle stand(s) beneath longitudinal members and adjacent to the lifting pad of the jack at appropriate point(s) D.

CAUTION: Position suitable material between axle stands and longitudinal members to prevent damage to the longitudinal members.

Carefully lower jack until vehicle rests on axle stands.

WARNING: Before commencing work on underside of vehicle, ensure that axle stands are correctly positioned and vehicle is securely supported.

Reverse procedure when removing vehicle from stands.
