Transmission Shield Loose/Rattle (LTB00470NAS1)
WARNING: This page is about the LR4 Base, which is a different variant/trim than selected.
Publication date: 2012-08-14Reference number: LTB00470NAS1
TRANSMISSION SHIELD LOOSE/RATTLE
TECHNICAL SERVICE BULLETIN
Reference Number(s): LTB00470NAS1, Date of Issue:
August 14, 2012
| LAND ROVER: | 2012 LR4 (LA), Range Rover Sport (LS) |
| SECTION: | 501 |
| AFFECTED VEHICLES: | LR4 (LA) VIN: CA598988 - CA627891 Model Year: 2012; Range Rover Sport (LS) VIN: CA717166 - CA755515 Model Year: 2012 |
CONDITION SUMMARY
Situation: The underbody transmission shield may be loose or 'rattles'.
Cause: This may be caused by the three rear fixings becoming loose due to insufficient retention.

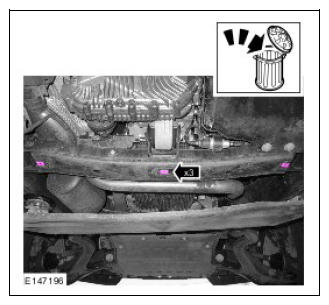

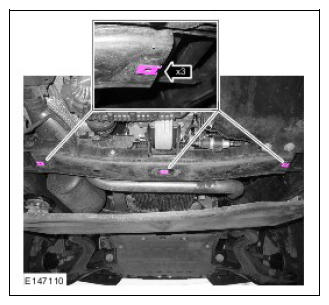

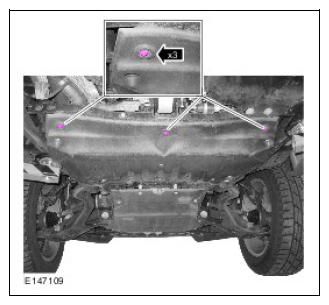

Action: In the event of a customer concern of the above, refer to the REPAIR PROCEDURE outlined below to install new securing clips and bolts.
PARTS
PARTS INFORMATION
| KYG500380 | Bolts | Qty: 3 |
| LR027995 | Clips | Qty: 3 |
TOOLS
Refer to Workshop Manual for any required special tools
WARRANTY
NOTE:
Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to DDW to obtain the latest repair time.
DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.
WARRANTY INFORMATION
| DESCRIPTION | SRO | TIME (HOURS) | CONDITION CODE | CAUSAL PART |
|---|---|---|---|---|
| Remove existing and install new securing clips and bolts | 76.10.10 | 0.10 | 33 | AYH100790 |
Normal Warranty policies and procedures apply
