Abs Sensor Circuit Diagnostic Trouble Codes (SSM72853)

WARNING: This page is about the LR4 Base, which is a different variant/trim than selected.

Publication date: 2016-07-05
Reference number: SSM72853

ABS SENSOR CIRCUIT DIAGNOSTIC TROUBLE CODES

TECHNICAL SERVICE BULLETIN

Reference Number(s): SSM72853, Date of Issue: July 5, 2016

LAND ROVER:	LR4 / L319
SECTION:	Chassis

SERVICE INFORMATION

Symptom 301000 Service Brake System

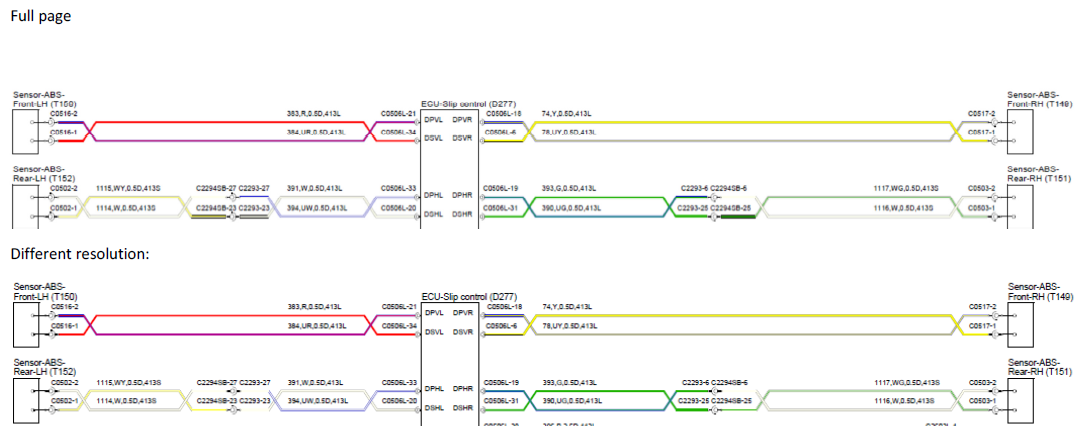

Attachments Circuit Diagram and Connector Locations.pdf (Circuit Diagram and Connector Locations.pdf)

ISSUE

Diagnostic Trouble Codes (DTCs) stored in the Anti-Lock Braking System (ABS) module relating to an error state with a Wheel Speed Sensor only.

CAUSE

Currently under investigation.

ACTION

Carry out a fault code read of the ABS system using Symptom Driven Diagnostics (SDD) and follow the on screen guidance with reference to TOPIx to determine the concern. If any of the fault codes recorded relate to an ABS wheel speed sensor then please perform the following diagnostics:

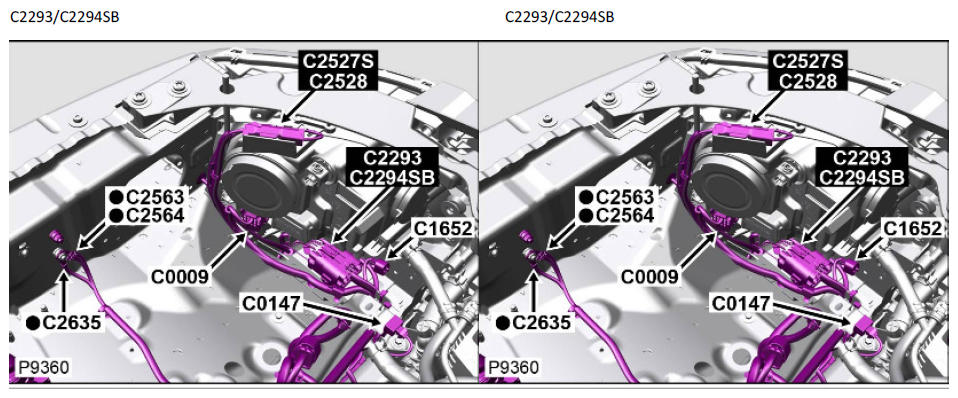

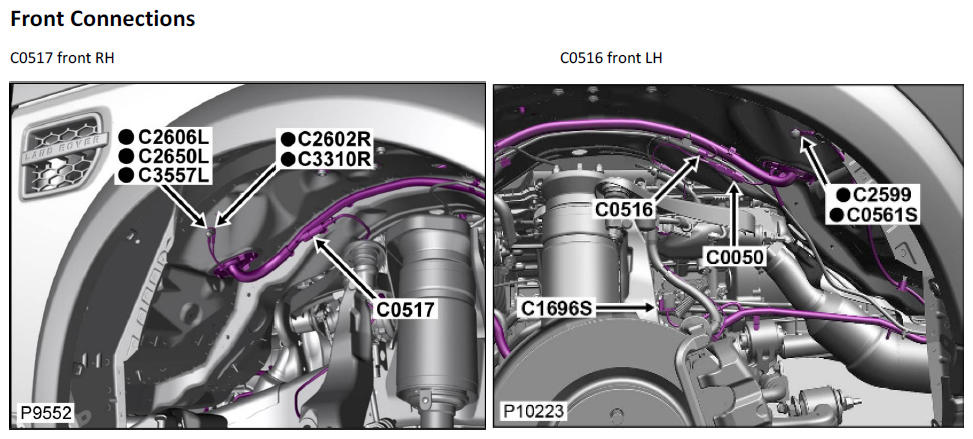

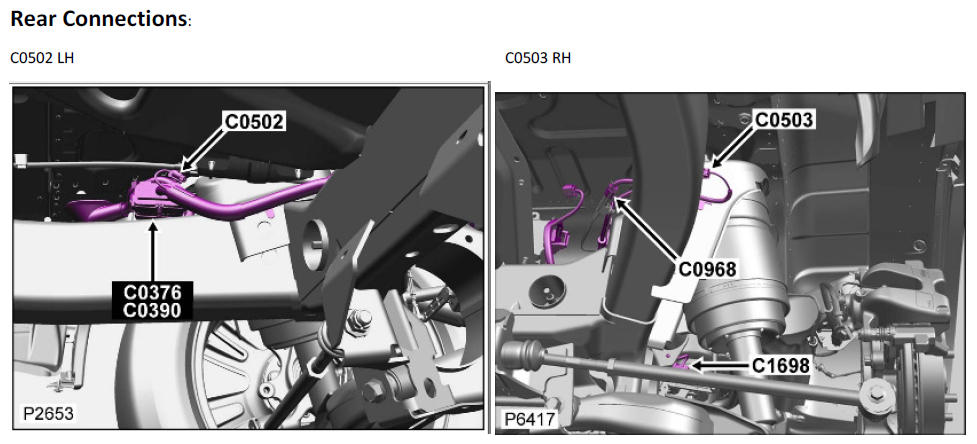

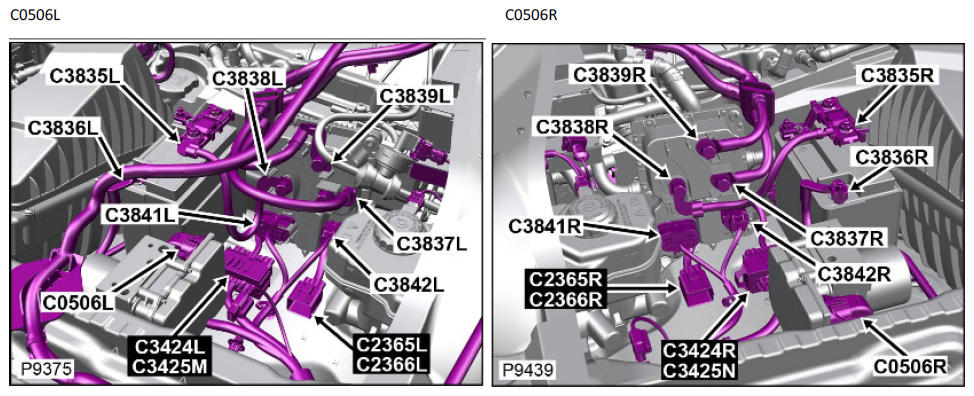

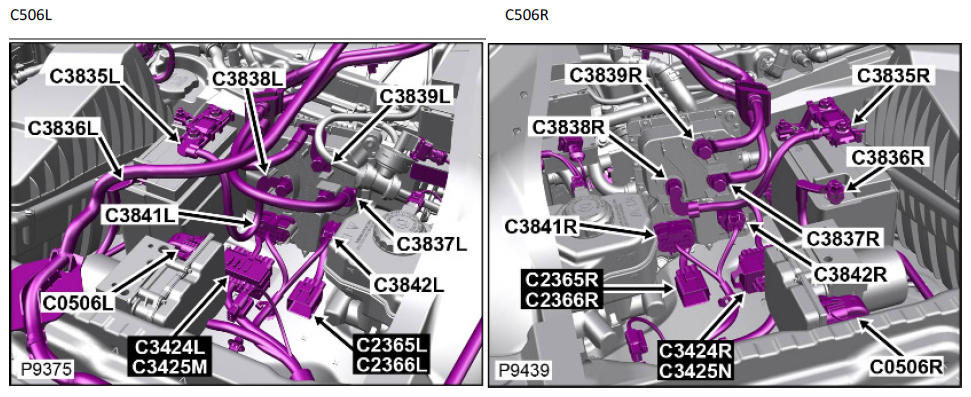

Confirm ABS wheel speed sensor circuit is OK and ensure the connectors are secure and latched. Please refer to the attachments for the relevant connector numbers and locations.
Confirm integrity of ABS module ground points ensuring security of the terminal/stud and check for any signs of paint contamination.
Confirm integrity of ABS module permanent and ignition power supply.

NOTE: Once the diagnosis is complete - if the fault is identified as being with the ABS wheel speed sensor - please replace the component and raise an ePQR detailing the issue along with the stored DTC. Workshop manual section 206-09A.
