CLICK NOISE WHEN OPENING/CLOSING FRONT/REAR DOOR

TECHNICAL SERVICE BULLETIN

Reference Number(s): LTB01179NAS1, Date of Issue: June 21, 2018

LAND ROVER:	2010-2016 LR4 (LA)
SECTION:	501-03: Body Closures
AFFECTED VEHICLE RANGE:	LR4 (LA) MODEL YEAR: 2010-2016 VIN: 516596-847658 ASSEMBLY PLANT: Solihull

NORTH AMERICA

SITUATION:

A click type noise may be heard when opening/closing a front and/or rear door.

CAUSE:

This may be caused by the front and/or rear door check arms being contaminated with dust/sand.

ACTION:

Should a customer express a concern, follow the appropriate Workshop Procedure below.

PARTS INFORMATION

PART NUMBER	DESCRIPTION	QUANTITY
BDH780070	Door check arm	Up to 4
BFM500020	Door check arm cover	Up to 4

NOTE:

Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to JLR claims submission system to obtain the latest repair time.
The JLR Claims Submission System requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.

DESCRIPTION	SRO	TIME (HOURS)	CONDITION CODE	CAUSAL PART
Check Arm - Front Door - Each-Replace	76.40.64	0.5	41	BDH780070
Check Arm - Front Door - Pair-Replace	76.40.65	0.9	41	BDH780070
Check Arm - Rear Door - Each-Replace	76.40.66	0.4	41	BDH780070
Check Arm - Rear Door - Pair-Replace	76.40.67	0.7	41	BDH780070

NOTE: Normal Warranty procedures apply.

Perform this Workshop Procedure only for a customer concern of a click noise when opening/closing a front door.

Remove and discard the affected front door check arm (see TOPIx Workshop Manual section 501-03: Body Closures - Removal and Installation - Front Door Check Arm-Removal steps 1-6).

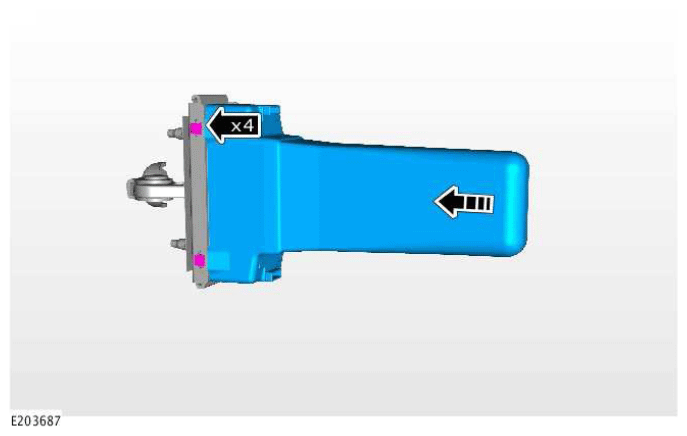

Install the new door check arm cover to the new front door check arm as shown.
Install the new front door check arm (see TOPIx Workshop Manual section 501-03: Body Closures - Removal and Installation - Front Door Check Arm - Installation steps 1-5).
Only if required: repeat steps 1- 3 for the other front door.

Perform this Workshop Procedure only for a customer concern of a click noise when opening/closing a rear door.

Remove and discard the affected rear door check arm (see TOPIx Workshop Manual section 501-03: Body Closures - Removal and Installation - Rear Door Check Arm-Removal steps 1-5).
Install the new door check arm cover to the new rear door check arm as shown.
Install the new rear door check arm (see TOPIx Workshop Manual section 501-03: Body Closures - Removal and Installation - Rear Door Check Arm - Installation steps 1- 4).
Only if required: repeat steps 1-3 for the other rear door.
