Hydraulic Versus Mechanical TENSIONERS (TT001-13)

WARNING: This page is about the LR4 Base, which is a different variant/trim than selected.
Publication date: 2013-01-01
Reference number: TT001-13

HYDRAULIC VERSUS MECHANICAL TENSIONERS

HYDRAULIC VERSUS MECHANICAL TENSIONERS

GATES TECHNICAL SERVICE BULLETIN

Reference Number(s): TT001-13
MAKE: All
MODEL: All
YEAR: All
ENGINE: All

SERVICE INFORMATION

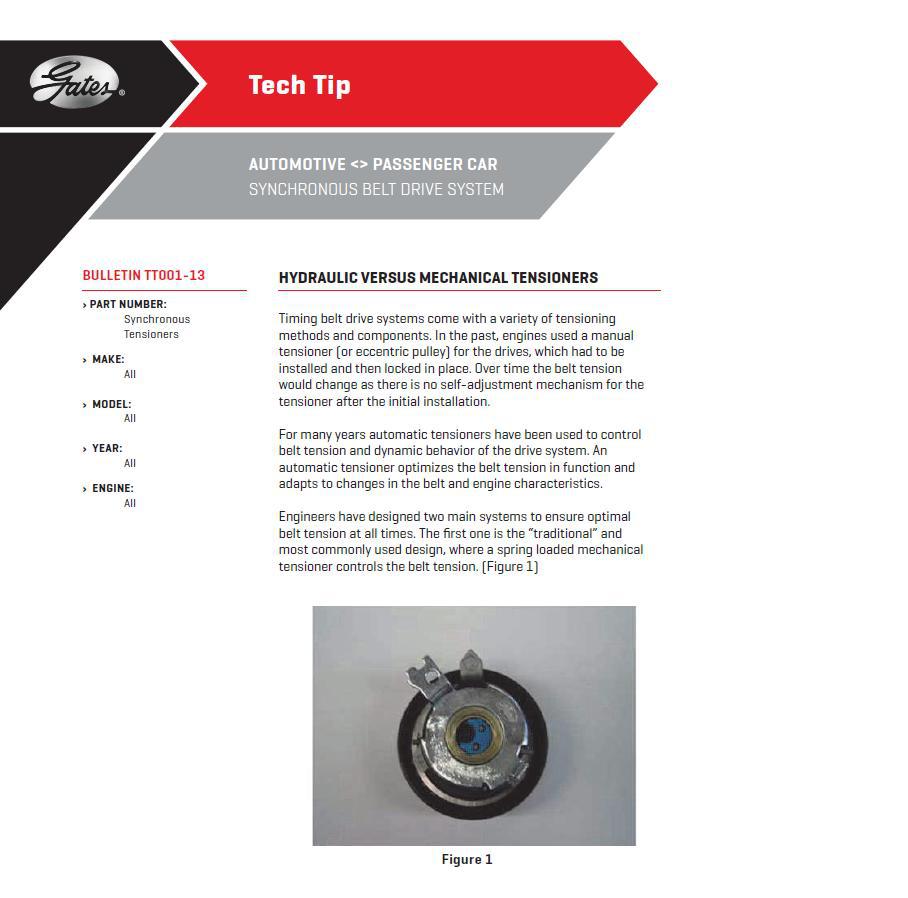

Fig 1: HYDRAULIC VERSUS MECHANICAL TENSIONERS page 1
G00381094

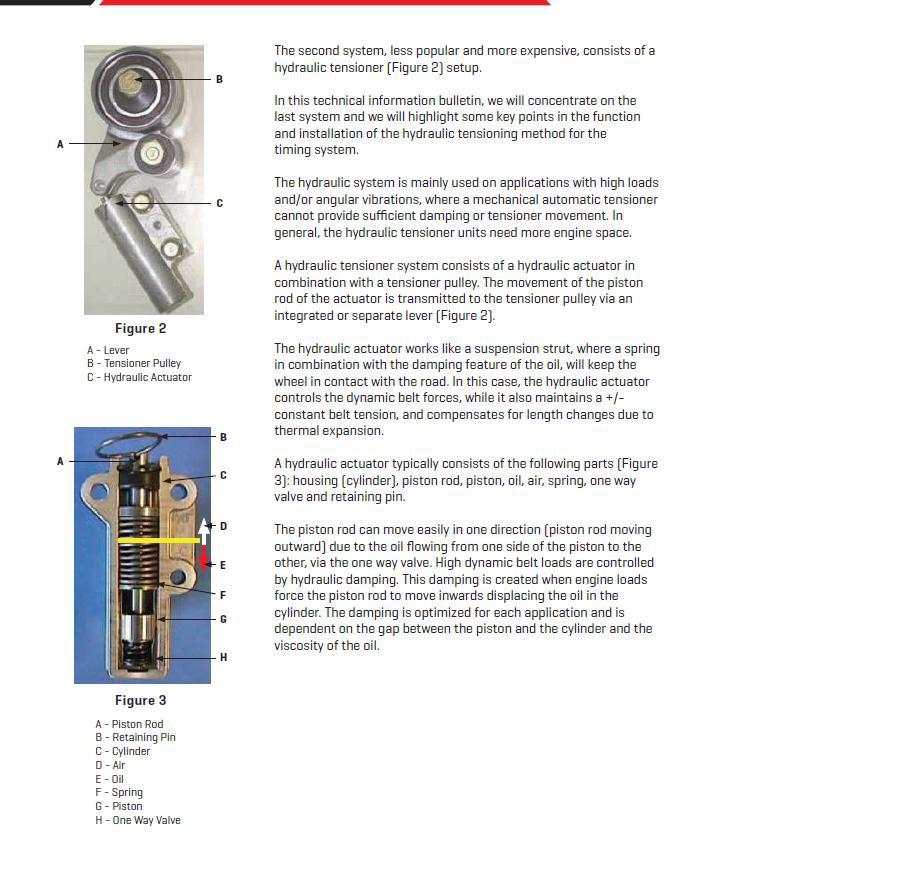

Fig 2: HYDRAULIC VERSUS MECHANICAL TENSIONERS page 2
G00381095

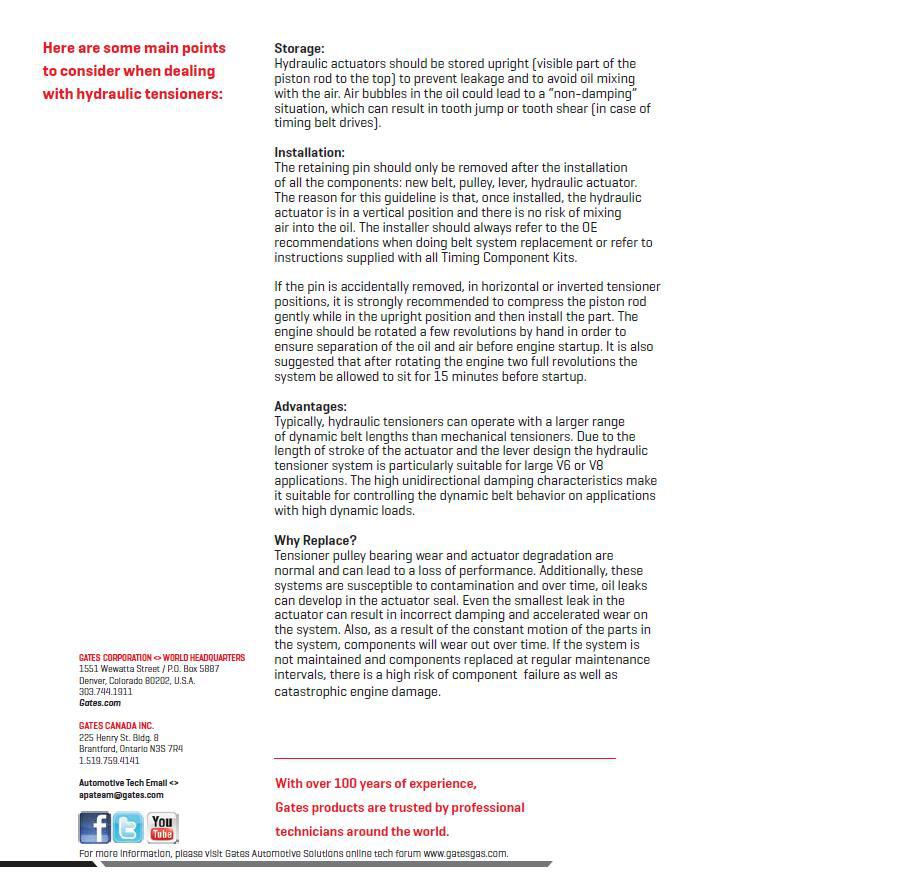

Fig 3: HYDRAULIC VERSUS MECHANICAL TENSIONERS page 3
G00381096
