POWERFOLD Door Mirrors - Judders During POWERFOLD Operation And/Or Is Loose/Vibrates (LTB00676NAS2)

WARNING: This page is about the LR4 Base, which is a different variant/trim than selected.

Publication date: 2015-10-05
Reference number: LTB00676NAS2
Supersedes refnos: LTB00676

POWERFOLD DOOR MIRRORS - JUDDERS DURING POWERFOLD OPERATION AND/OR IS LOOSE/VIBRATES

TECHNICAL SERVICE BULLETIN

Reference Number(s): LTB00676NAS2, Date of Issue: October 05, 2015

LAND ROVER:	2010 Onwards LR4 (LA); 2008-2015 LR2 (LF); 2005-2009 LR3 (LA); 2006-2013 Range Rover Sport (LS)
SECTION:	501-09
AFFECTED VEHICLES:	LR4 (LA) Model Year: 2010 Onwards VIN: 510742 Onwards Manufacturing Plant: Solihull With: Power Folding Mirrors, LR2 (LF) Model Year: 2008-2015 VIN: 000212-439912 Manufacturing Plant: Halewood With: Power Folding Mirrors, LR3 (LA) Model Year: 2005-2009 VIN: 000256-513325 Manufacturing Plant: Solihull With: Power Folding Mirrors, Range Rover Sport (LS) Model Year: 2006-2013 VIN: 900129-814822 Manufacturing Plant: Solihull With: Power Folding Mirrors

NOTE: This reissue replaces all previous versions. Please destroy all previous versions.

CONDITION SUMMARY

Situation: The door mirror may 'judder' during powerfold (manual or automatic) operation and/or may be loose or vibrates.

Cause: This may be caused by a tolerance stack-up between the door mirror and the door and/or the retaining screws may be loose/under torqued.

Action: Should a customer express this concern, follow the appropriate Service Instruction [A or B] outlined below.

PARTS

PARTS INFORMATION

WC105002

Washer

Quantity: 4 (2 per side)

TOOLS

Refer to Workshop Manual for any required special tools.

WARRANTY

NOTE: Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to TOPIx to obtain the latest repair time.

NOTE: DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.

DESCRIPTION	SRO	TIME (HOURS)	CONDITION CODE	CAUSAL PART
Door mirror - Powerfold - Diagnosis and rectification	76.11.89.67	0.2	41	LR041878
Door mirror - Powerfold - Diagnosis and rectification - Vehicle set - LR3 (L319), LR4 (L319), Range Rover Sport (L320)	76.11.89.95	0.5	41	LR041878
Door mirror - Powerfold - Diagnosis and rectification - Vehicle set - LR2 (L359)	76.11.89.95	0.4	41	LR041878

NOTE: Normal Warranty procedures apply.

SERVICE INSTUCTION 'A' - 'Judder' Concern Only

LR3 (L319), LR4 (L319), Range Rover Sport (L320) vehicles only

NOTE: Service Instruction 'A' to be performed for a 'judder' during powerfold operation concern only.

CAUTION: make sure no damage is caused to the powerfold door mirror.

CAUTION: do not apply any form of external lubrication, as this will have no effect to the internals of the mechanism and may cause damage.

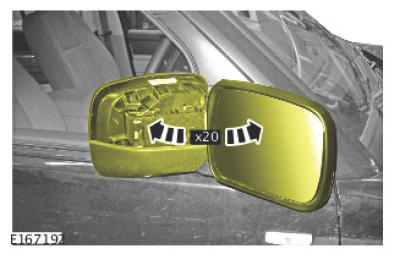

Manually move the powerfold door mirror forwards and backwards 20 times, then return the powerfold door mirror to the central position.

NOTE: do not disconnect the powerfold door mirror - trim electrical connector.

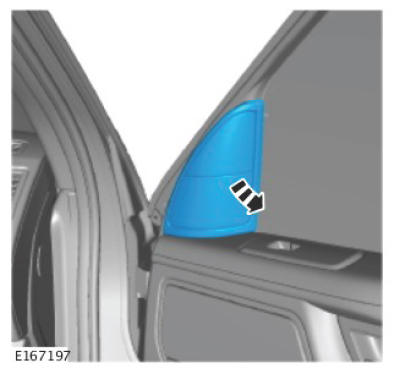

Release the powerfold door mirror - interior trim.

CAUTION: take care not to damage the paint on the vehicle.

NOTE: do not disconnect the powerfold door mirror electrical connector.

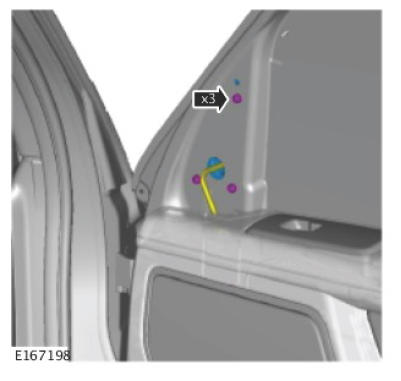

Release the powerfold door mirror.

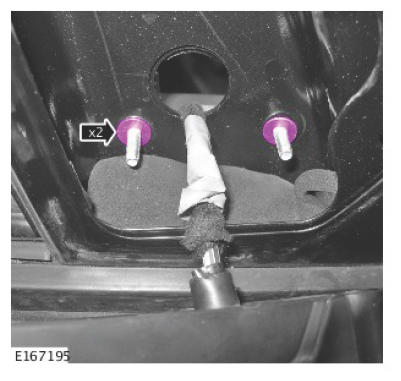

Install the washers to the powerfold door mirror lower retaining bolts only.
Install the powerfold door mirror.
- Torque: 6 Nm
Check the operation of the powerfold door mirror.

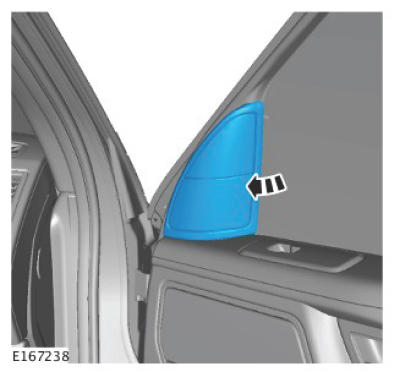

Install the powerfold door mirror - interior trim.

SERVICE INSTRUCTION 'B' - LOOSE/VIBRATION CONCERN ONLY

Vehicles with removable powerfold mirror covers.

NOTE: Service Instruction B' to be performed for a loose/vibration concern only.

NOTE: right-hand side shown; left-hand side similar

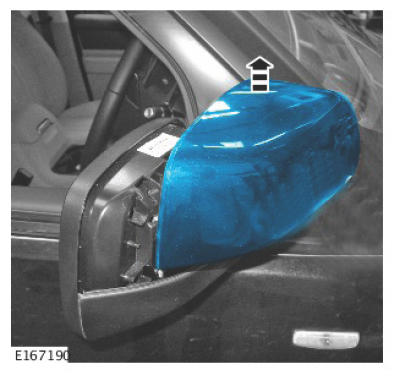

Remove the door mirror cover.

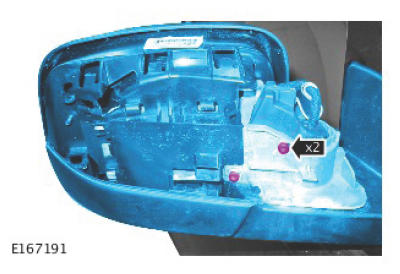

NOTE: if the screws are loose the mirror head will be loose or vibrate.
Tighten the powerfold door mirror head screws.
- Torque: 2 Nm
Check the operation of the powerfold door mirror.

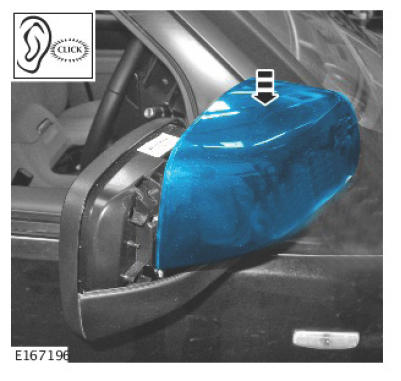

Install the powerfold door mirror cover.
