Front SEATBELT(S) Slow To Retract (LTB00868NAS2)
WARNING: This page is about the LR4 Base, which is a different variant/trim than selected.
Publication date: 2016-02-03Reference number: LTB00868NAS2
Supersedes refnos: LTB00868, LTB00868NAS1
FRONT SEATBELT(S) SLOW TO RETRACT
TECHNICAL SERVICE BULLETIN
Reference Number(s): LTB00868NAS2, Date of Issue:
March 01, 2017
| LAND ROVER: | 2010-2014 LR4 (LA) |
| SECTION: | 501-20A |
| AFFECTED VEHICLES: | Model: LR4 (LA) Model Year: 2010-2014 Vin: 510178-747648 Assembly Plant: Solihull |
MARKETS
NORTH AMERICA
CONDITION SUMMARY
SITUATION:
The front seatbelt(s) may be slow to retract.
CAUSE:
This may be caused by the design of the upper B-pillar trim, allowing the seatbelt to drag on the upper B-pillar trim.
ACTION:
Should a customer express this concern, follow the Service Instruction below.
PARTS
PARTS INFORMATION
| PART NUMBER | DESCRIPTION | QUANTITY: |
|---|---|---|
| LR069022 | Right Side Upper 'B' Post Trim | 1 |
| LR069021 | Left Side Upper 'B' Post Trim | 1 |
| LR020242 | L/H/D Seat Belt Black Left Hand | 1 |
| LR009282 | L/H/D Seat Belt NAS Spec Black Right Hand | 1 |
| EYG500230 | Seat Belt Retractor Bolt | 1 |
| LR080344 | Seat Frame Seat Belt Anchor Bolt | 1 |
WARRANTY
NOTE:
- Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to TOPIx to obtain the latest repair time.
- DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.
| DESCRIPTION | SRO | TIME (HOURS) | CONDITION CODE | CAUSAL PART |
|---|---|---|---|---|
| Trim finisher - B-pillar - Upper - Renew | 76.13.28 | 0.3 | 42 | LR013145 |
| Automatic belt assembly - Front - Each - Renew | 76.73.13 | 0.4 | 42 | LR013145 |
NOTE:
Normal Warranty procedures apply.
COMPONENT LOCATION

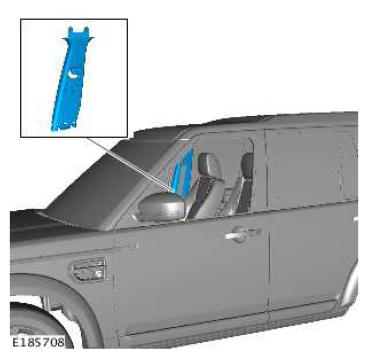

Component location.
SERVICE INSTRUCTION
NOTE:
ALL seatbelt anchor bolts MUST be replaced if removed.
- Remove the B-pillar trim finisher (see TOPIx Workshop Manual, section 501-05: Interior Trim and Ornamentation).NOTE:
- the seatbelt MUST be changed If the webbing of the seatbelt is damaged.
- the seatbelt should fully retract within three seconds.
- Check the seatbelt retraction speed and the seatbelt webbing.
- To test the retraction speed of the seatbelt, sit in the vehicle and buckle the seatbelt.
- Release the buckle.
- The webbing should retract within three seconds (different clothing may have an impact on the retraction speed).
- If the retraction speed is not acceptable or the webbing is damaged, continue to step 3.
- If the retraction speed is acceptable and the webbing is in good condition, continue to step 4.
- The webbing should retract within three seconds (different clothing may have an impact on the retraction speed).
- Replace the front seatbelt (see TOPIx Workshop Manual, section 501-20A: Safety Belt System).
- Install the new B-pillar trim finisher (see TOPIx Workshop Manual, section 501-05: Interior Trim and Ornamentation).
- With the new trim installed, assess the retraction speed of the seatbelt.
- The seatbelt should fully retract within three seconds.
