Improving Diagnostics For Warning Lamp Symptoms And Messages (SSM50857)

WARNING: This page is about the LR4 Base, which is a different variant/trim than selected.

Publication date: 2011-07-29
Reference number: SSM50857

IMPROVING DIAGNOSTICS FOR WARNING LAMP SYMPTOMS AND MESSAGES

TECHNICAL SERVICE BULLETIN

Reference Number(s): SSM50857, Date of Issue: July 29, 2011

LAND ROVER:	Range Rover Evoque, LR2, New Range Rover, Defender, LR3, LR4, Range Rover Sport
CATEGORY:	Diagnostic Software Hardware
LAST MODIFIED:	July 29, 2011
SYMPTOM:	000101 Diagnostic Concerns

ISSUE

Improving the recommendations by the SDD tool when customer symptom is "(multiple) warning lights on in instrument" or "warning message in display".

CAUSE

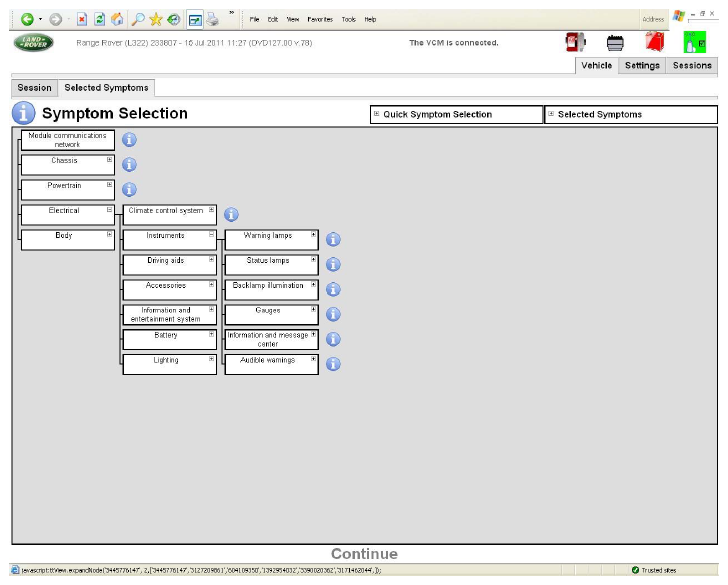

The symptom selection is not carried on past the general symptom "Warning lamps" or "Information and message center" 3rd level on the diagnostics screen. See attached file.

ACTION

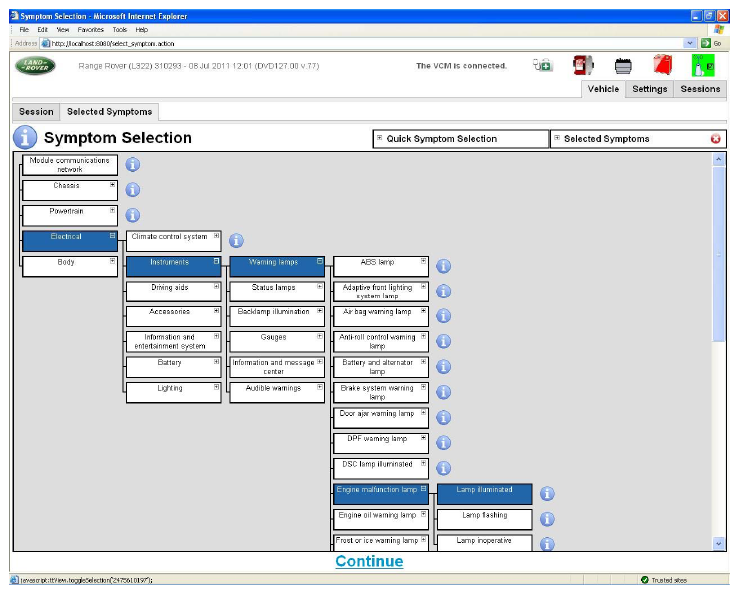

To improve the diagnostics and the recommendations provided by the SDD tool, all warning lights and warning message symptoms should always be selected to the 4th level or the 5th level (where applicable). See attached file. Listed below are the most frequently reported lamps as illuminating.

ABS lamp as appropriate:

Electrical\Instruments\Warning lamps\ABS lamp illuminated

Electrical\Instruments\Warning lamps\ABS lamp intermittent

Airbag lamp as appropriate:

Electrical\Instruments\Warning lamps\Air bag warning lamp\Lamp illuminated

Electrical\Instruments\Warning lamps\Air bag warning lamp\Lamp intermittent

Electrical\Instruments\Warning lamps\Air bag warning lamp\Lamp flashing

Dynamic stability control lamp as appropriate:

Electrical\Instruments\Warning lamps\DSC lamp illuminated\Lamp intermittent

Electrical\Instruments\Warning lamps\DSC lamp illuminated\Lamp flashing

Engine malfunction lamp as appropriate:

Electrical\Instruments\Warning lamps\Engine malfunction lamp\ Lamp illuminated

Electrical\Instruments\Warning lamps\Engine malfunction lamp\ Lamp flashing

Park brake lamp as appropriate:

Electrical\Instruments\Warning lamps\Park brake warning lamp\Yellow warning lamp illuminated

Electrical\Instruments\Warning lamps\Park brake warning lamp\Red warning lamp illuminated

lamp\Red warning lamp flashing

Transmission warning lamp

Electrical\Instruments\Warning lamps\Transmission warning lamp illuminated\Yellow warning lamp illuminated

Electrical\Instruments\Warning lamps\Transmission warning lamp illuminated\Red warning lamp illuminated

Air suspension message "Suspension lowered for safety" (For Discovery, Range Rover and Range Rover Sport)

Electrical\Instruments\Information and message center\Message display area\Chassis

Level 3

Level 5
