'CREAK' NOISE FROM FRONT SEAT BASE
TECHNICAL SERVICE BULLETIN
Reference Number(s): LTB00530NAS1, Date of Issue:
March 08, 2013
| LAND ROVER: | 2010-2012 LR2 (LF); 2010-2012 LR4 (LA); 2010-2012 Range Rover Sport (LS) |
| SECTION: | 501-10 |
| AFFECTED VEHICLES: | LR2 (LF) Model Year: 2010-2012 VIN: AH148520-CH272954; LR4 (LA) Model Year: 2010-2012 VIN: AA510178-CA601050; Range Rover Sport (LS) Model Year: 2010-2012 VIN: AA304246-CA722211 |
MARKETS
NAS
CONDITION SUMMARY
Situation: A 'creak' noise may be heard when sitting on the seat cushion.
Cause: This may be caused by insufficient lubrication at the seat pivot point.
Action: In the event of a customer concern of the above, refer to the REPAIR PROCEDURE outlined below.
PARTS
NOTE:
To be sourced from the Squeaks & Rattles kit; refer to Technical Bulletin LTB00389NAS for more information
PARTS INFORMATION
| Nyogel 774L | Quantity: 1 |
TOOLS
Refer to Workshop Manual for any required special tools.
WARRANTY
NOTE:
Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to TOPIx to obtain the latest repair time.
NOTE:
DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.
WARRANTY INFORMATION
| DESCRIPTION | SRO | TIME (HOURS) | CONDITION CODE | CAUSAL PART |
|---|---|---|---|---|
| Seat cushion - front seat - remove for access and reinstall - right front seat cushion - LR2 | 78.10.12.99 | 0.10 | 42 | LR017006 |
| Seat cushion - front seat - remove for access and reinstall - left front seat cushion - LR2 | 78.10.12.99 | 0.10 | 42 | LR017008 |
| Seat cushion - front seat - remove for access and reinstall - right front seat cushion - LR4, Range Rover Sport | 78.10.12.99 | 0.20 | 42 | LR017006 |
| Seat cushion - front seat - remove for access and reinstall - left front seat cushion - LR4, Range Rover Sport | 78.10.12.99 | 0.20 | 42 | LR017008 |
NOTE:
Normal Warranty policies and procedures apply.
REPAIR PROCEDURE
-
NOTE: Make sure the customer concern is a 'creak' noise; if it is a seat 'rock' concern, refer to Technical Bulletin LTB00176NAS.
Remove the affected seat lower cushion (TOPIx Workshop Manual section 501-10).

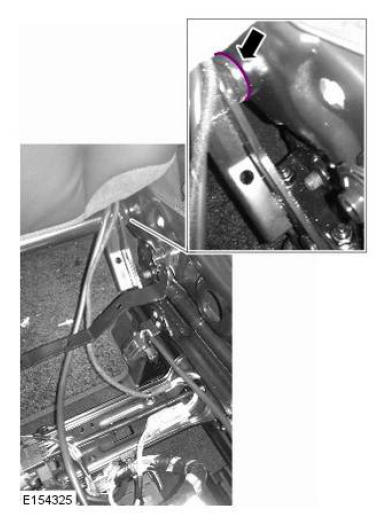

- Lubricate the seat pivot point as shown using Nyogel 744L from the Squeaks & Rattles Kit.
- Install the seat lower cushion (TOPIx Workshop Manual section 501-10).
