Starter Motor Diagnostic Flow Chart (SSM65778)
WARNING: This page is about the LR4 Base, which is a different variant/trim than selected.
Publication date: 2013-06-03Reference number: SSM65778
STARTER MOTOR DIAGNOSTIC FLOW CHART
TECHNICAL SERVICE BULLETIN
Reference Number(s): SSM65778, Date of Issue:
June 03, 2013
| LAND ROVER: | Range Rover Sport/L320; LR3/L319; Freelander/L314; LR2/L359; Range Rover Evoque/L538; Range Rover/P38a; Range Rover (All New)/L405; Discovery 2/L318; LR4/L319; Range Rover/L322; Range Rover Classic; Defender/L316; Discovery 1 |
| CATEGORY: | Electrical |
SERVICE INFORMATION
Symptom 203000 Basic Electrical
CONCERN
A number of starter motors are being returned through the warranty parts return system with no fault found to warrant replacement.
CAUSE
Diagnosis of the starter motor may be incorrect.
CORRECTION

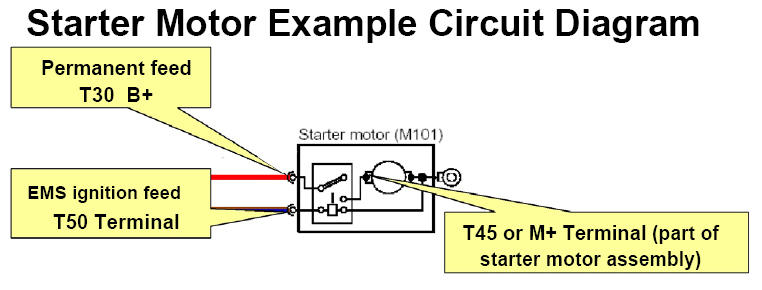

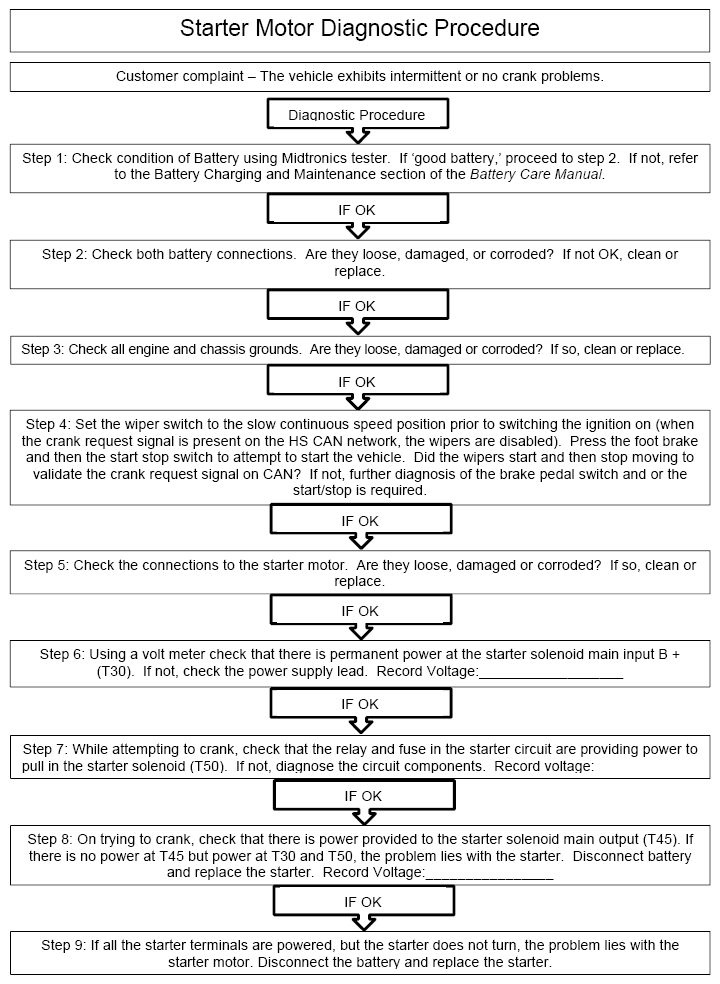

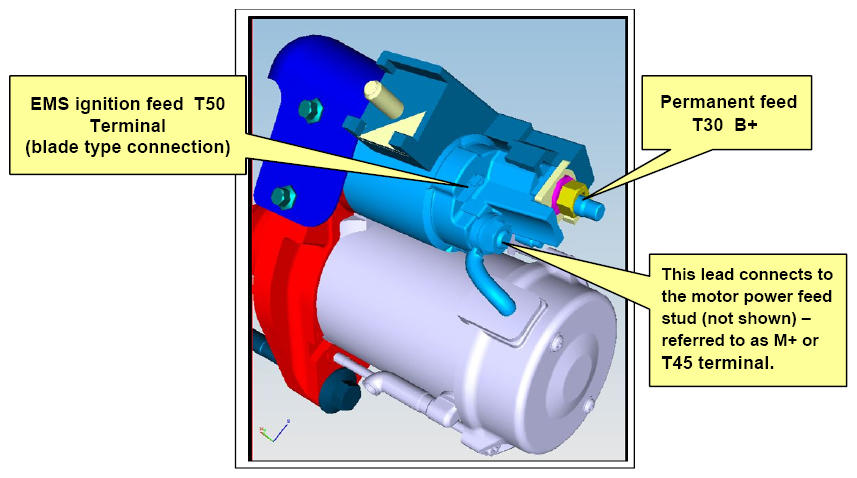

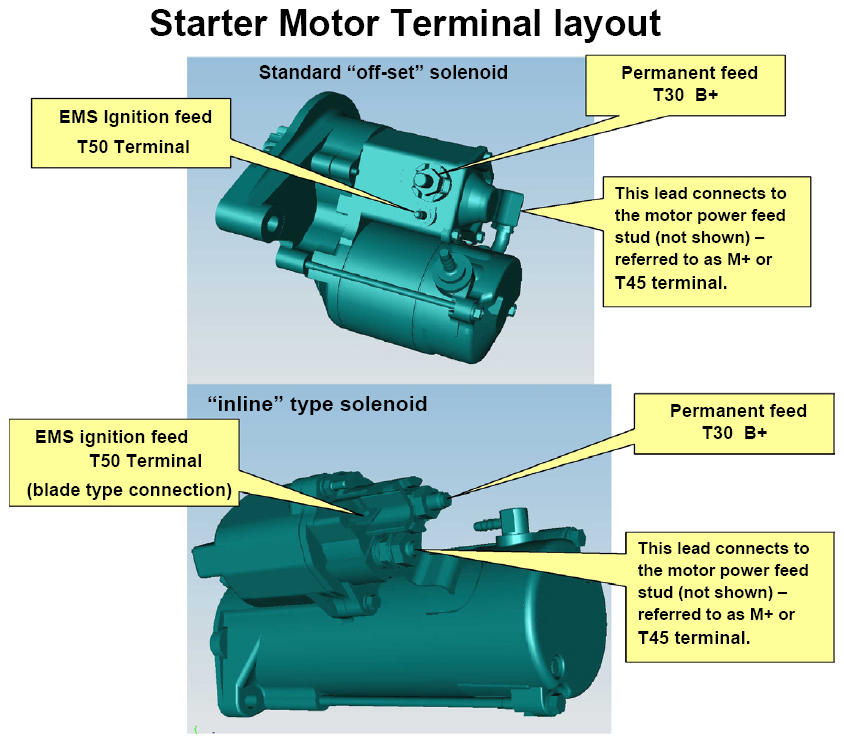

A diagnostic flow chart has been attached to this SSM to help correctly diagnose a starter motor concnern. Please reference the attached PDF for diagnostic steps when diagnosing a starter motor.
