Rear Left-Side Chassis-To-Body Harness Connector Protective Sleeve (LTB00644NAS1)

WARNING: This page is about the LR4 Base, which is a different variant/trim than selected.

Publication date: 2014-05-09
Reference number: LTB00644NAS1

REAR LEFT-SIDE CHASSIS-TO-BODY HARNESS CONNECTOR PROTECTIVE SLEEVE

TECHNICAL SERVICE BULLETIN

Reference Number(s): LTB00644NAS1, Date of Issue: May 09, 2014

LAND ROVER:	2005-2009 LR3 (LA); 2010-2013 LR4 (LA); 2006-2013 Range Rover Sport (LS)
SECTION:	418-02
AFFECTED VEHICLES:	LR3 (LA) Model Year: 2005-2009 VIN: 5A000259-9A513325; LR4 (LA) Model Year: 2010-2013 VIN: AA510178-DA699716; Range Rover Sport (LS) Model Year: 2006-2013 VIN: 6A900129-DA814822

MARKETS

NAS

CONDITION SUMMARY

Situation: Multiple warning lights may be displayed on the Instrument Cluster.

Cause: This may be caused by corroded chassis wiring harness at the rear left-side chassis-to-body connector.

Action: Should a customer express this concern, follow the Service Instruction outlined below.

PARTS

PART DESCRIPTION

LR059307	Protective sleeve	Quantity: 1
LR059307	Cable ties, locally sourced	Quantity: 2

TOOLS

Refer to Workshop Manual for any required special tools.

WARRANTY

NOTE: Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to TOPIx to obtain the latest repair time.

NOTE: DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.

DESCRIPTION	SRO	TIME (HOURS)	CONDITION CODE	CAUSAL PART
Protective sleeve - Rear left-side chassis-to-body connector - Install - LR3/LR4 (L319)	86.71.89.52	0.5	42	LR029833
Protective sleeve - Rear left-side chassis-to-body connector - Install - Range Rover Sport (L320)	86.71.89.52	0.5	42	LR030129

NOTE: Normal Warranty policies and procedures apply.

SERVICE INSTRUCTION

NOTE: Prior to performing the Service Instruction, any corroded or damaged wires in the connector block must be repaired using the harness repair kit prior to performing the Service Instruction (see TOPIx Workshop Manual, section 418-02, for additional information on harness repair); to be performed out as a separate claim.

Remove the spare wheel and tire (see Owner's Handbook).
Raise and support the vehicle (see TOPIx Workshop Manual, section 100-02).
Remove the rear left wheel and tire (see TOPIx Workshop Manual, section 204-04).
Disconnect the battery (see TOPIx Workshop Manual, section 414-00).

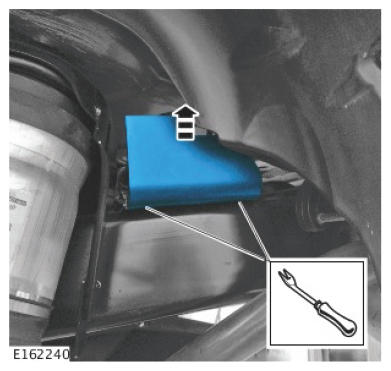

Using a suitable trim lever, remove the cover.

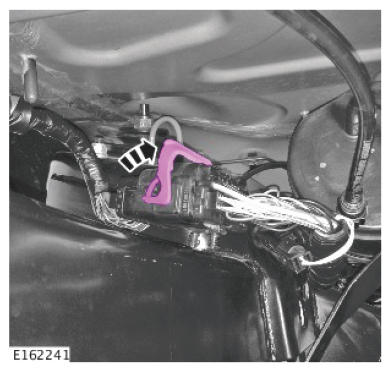

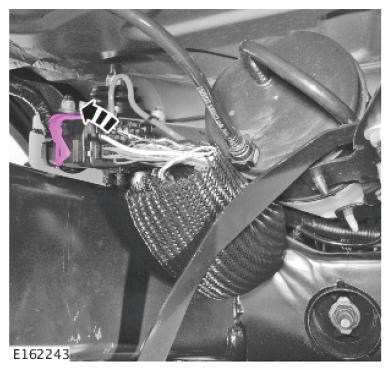

Disconnect the rear left-side chassis-to-body connector.

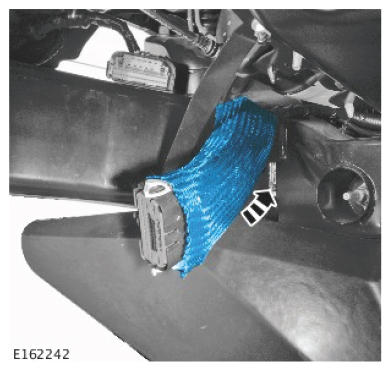

Install the protective cover onto the wiring harness.
Connect the rear left-side chassis-to-body connector.

NOTE: Make sure the connector is secured.

NOTE: Make sure the cable tie is tightened over the insulated part of the harness.

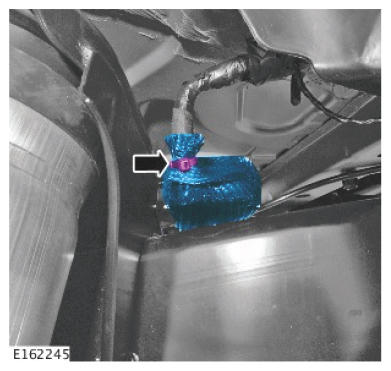

Secure the end of the protective cover with a cable tie as shown.

NOTE: Make sure the cable tie is tightened over the insulated part of the harness.

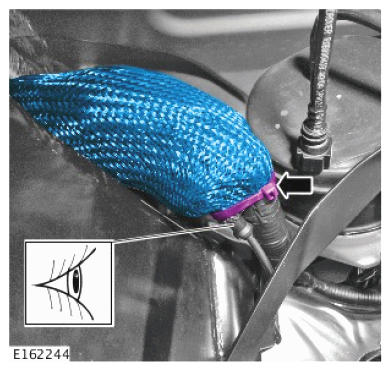

Secure the end of the protective cover with a cable tie as shown.

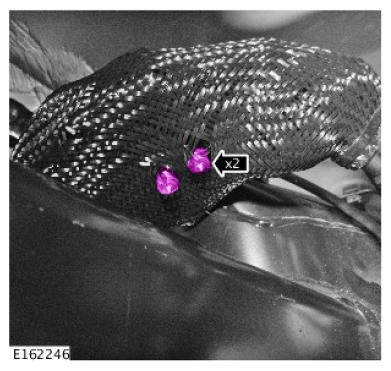

Expose the connector securing fir tree clips through the protective cover.

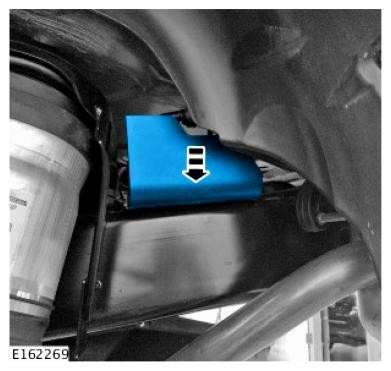

Install the cover.

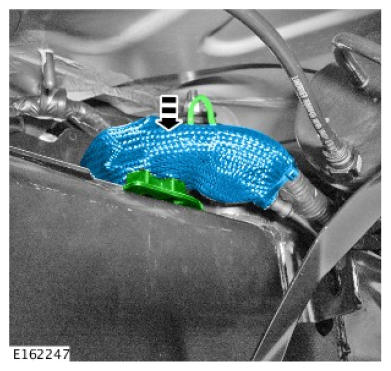

Install the connector into the cover.
Install the rear left wheel and tire. (see TOPIx Workshop Manual, section 204-04).
Lower the vehicle.
Install the spare wheel and tire (see Owner's Handbook).
Connect the battery (see TOPIx Workshop Manual, section 414-00).
