Power Steering Fluid Cooler - (4.0L/5.0L): Removal

    All vehicles

  1. Disconnect the battery ground cable. Refer to Specifications article.
  2. Remove the front radiator grille. Refer to Radiator Grille article.
  3. Remove the coolant expansion tank. Refer to Coolant Expansion Tank article.
  4. Siphon the fluid from the power steering reservoir.
    5. CAUTION: Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
  5. Disconnect the steering reservoir return hose.
    • Position an absorbent cloth to collect fluid spillage.
    • Release the clip.
    GJ0014045
  6. Release the LH radiator air deflector lower clip, position the deflector aside.
    GJ0014046

    7. Vehicles with 4.0L engine

  7. Position the LH horn aside for access.
    • Remove the nut.
    GJ0018972

    8. Vehicles with 5.0L engine

  8. Position the horns to one side for access.
    • Remove the 2 bolts.
    GJ0014047

    9. All vehicles

    CAUTION: Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
    NOTE: Some fluid spillage is inevitable during this operation.
  9. Using the special tool, disconnect the cooler line.
    • Position an absorbent cloth to collect fluid spillage.
    GJ0014048
  10. Remove the cooler line separating clip.
    11. NOTE: Care must be taken to prevent damage to the cooler elements during removal and installation.
  11. Remove the power steering fluid cooler.
    • Release the 3 clips.

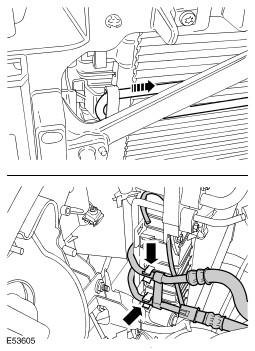

    GJ0014049
