4.2L S/C & 4.4L V8 Engines (2005 LR3 VIN 5), (2006-13)

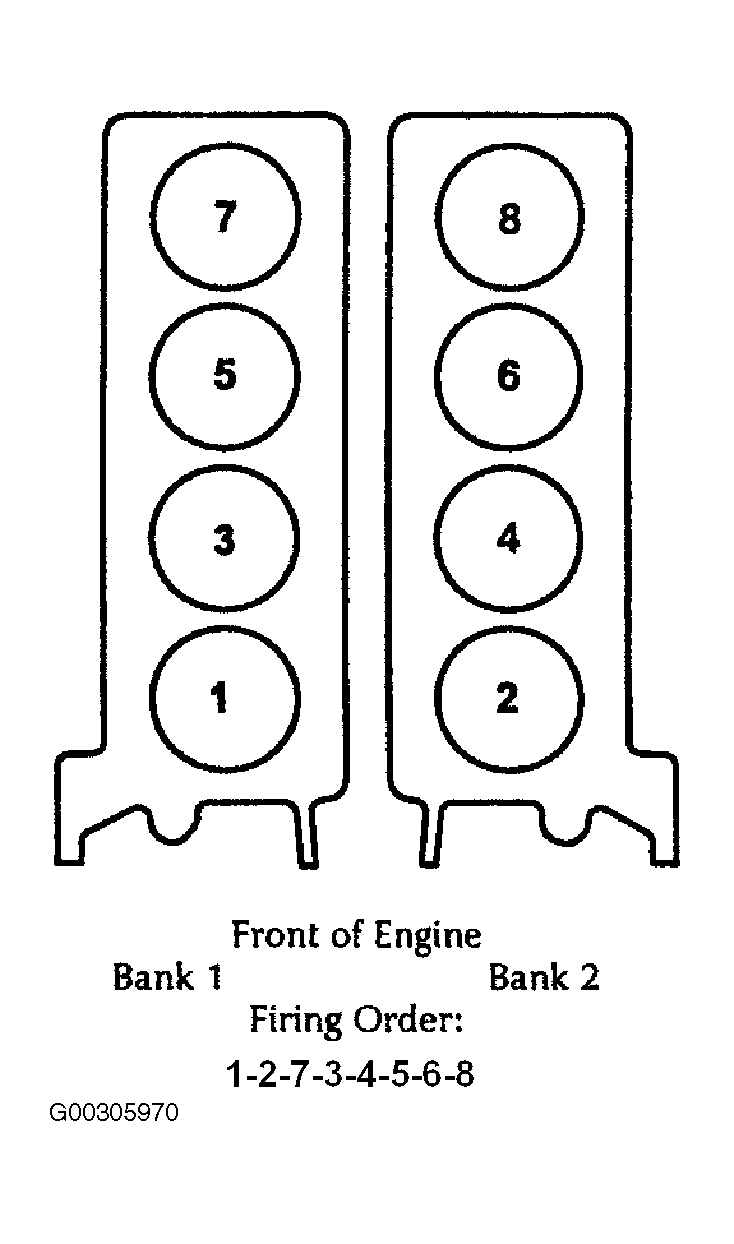

Engine Configuation Firing Order Cylinder Identification
4.2L S/C & 4.4L 1-2-7-3-4-5-6-8
G00305970Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
