Central Junction Box (CJB): Removal

  1. If the central junction box (CJB) is to be replaced, connect T4 to the vehicle.
  2. Remove the glove compartment. Refer to Glove Compartment information.
  3. Remove the passenger side closing trim panel.
    • Release the clip.
    • Remove the 2 screws.
    • Disconnect the electrical connector.
      GJ0013955

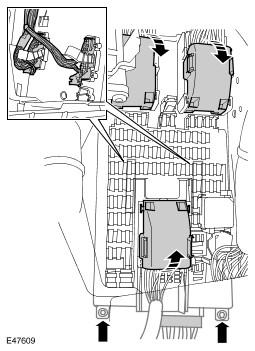

  4. Remove the CJB.
    • Remove the 2 nuts.
    • Disconnect the 6 electrical connectors.
      GJ0019179
