Driver Seat Module (DSM): Removal

  1. Remove the front seat cushion front access cover.
    • Release the 4 clips.
    GJ0019769
    2. CAUTION: Note of the routing of the wiring harnesses.
    NOTE: Raise the seat base for access.

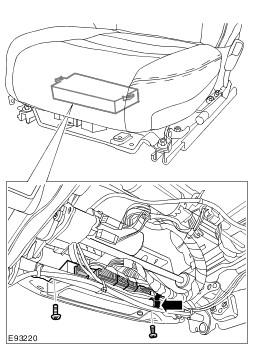

  2. Remove the driver seat module.
    • Remove the 2 Torx screws.
    • Release the harness clip.
    • Disconnect the 5 electrical connectors.
    GJ0019770
