Exterior Lighting: Notes

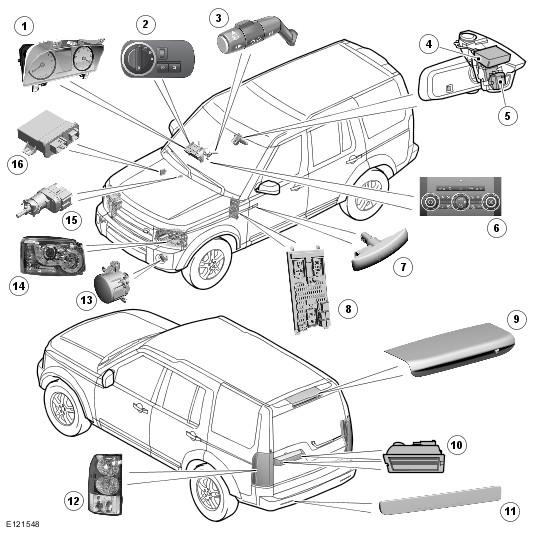

Exterior Lighting Component Location
| Item Number | Description |
|---|---|
| 1 | Instrument cluster |
| 2 | Lighting control switch |
| 3 | Left Hand (LH) steering column multifunction switch |
| 4 | Rain/light sensor |
| 5 | Auto high beam control module and image sensor |
| 6 | Hazard warning lamp switch |
| 7 | Side repeater turn signal indicator lamp |
| 8 | Central Junction Box (CJB) |
| 9 | High mounted stop lamp |
| 10 | License plate lamps |
| 11 | Reflector |
| 12 | Rear lamp assembly |
| 13 | Front fog lamp |
| 14 | Headlamp assembly |
| 15 | Stop lamp switch |
| 16 | Adaptive Front lighting System (AFS) control module |
