Front Brake Pad Replacement LR051626 (SSM68798)

WARNING: This page is about the LR4 Base, which is a different variant/trim than selected.

Publication date: 2013-10-14
Reference number: SSM68798

FRONT BRAKE PAD REPLACEMENT LR051626

TECHNICAL SERVICE BULLETIN

Reference Number(s): SSM68798, Date of Issue: October 14, 2013

LAND ROVER:	Range Rover Sport/L320; LR4/L319
CATEGORY:	Chassis

SERVICE INFORMATION

Symptom 301000 Service Brake System

ISSUE

When replacing the brake pads for any reason, dealers are reporting confusion between the old and new level parts. Affected brake pad part number is LR051626

CAUSE

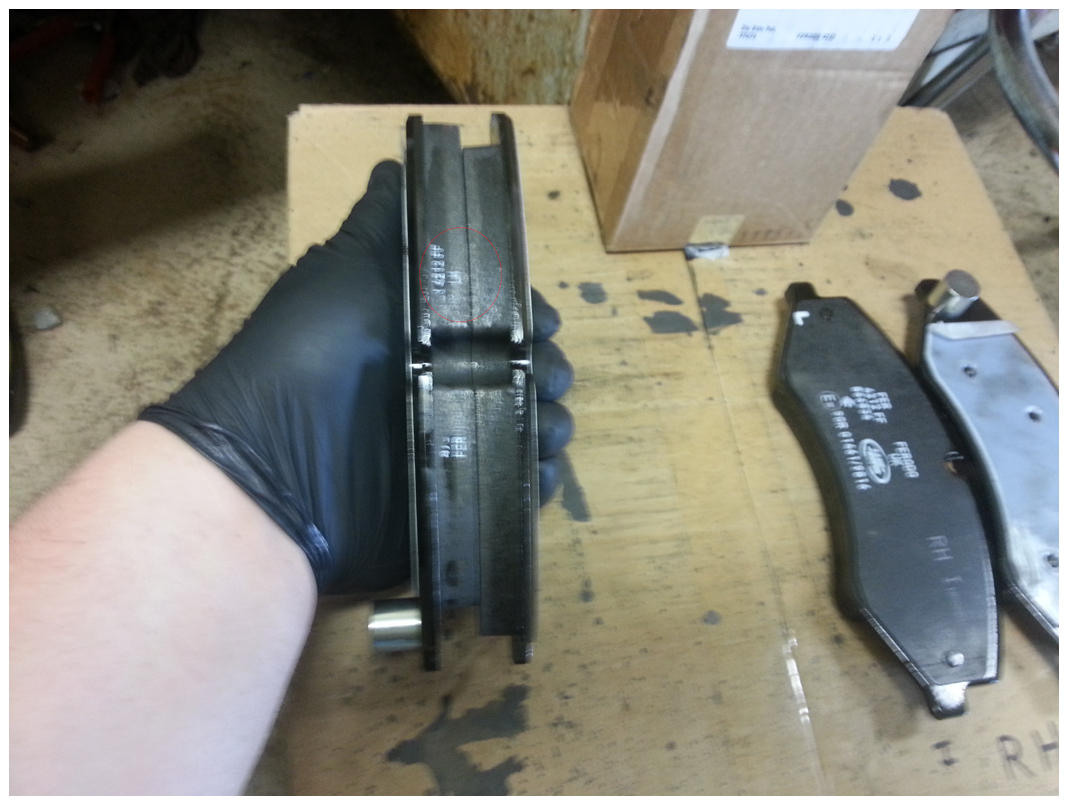

Parts have been incorrectly stamped LH and RH on the outer brake pads. See attached photo.

Content

ACTION

Please refer to TOPIx, section 206-03 Brake Pads, vehicles with standard brakes. It is important to note that the small mass fitted to the outer brake pad is always at the top of the caliper regardless of any writing which may be found on the outer brake pad itself.

Manufacturing have rectified this concern and brake pads manufactured from 15th August 2013 are labeled correctly.
