MAGNA Transfer Case Oil Leak (At Mating Face) (SSM71964)
WARNING: This page is about the LR4 Base, which is a different variant/trim than selected.
Publication date: 2014-09-05Reference number: SSM71964
MAGNA TRANSFER CASE OIL LEAK (AT MATING FACE)
TECHNICAL SERVICE BULLETIN
Reference Number(s): SSM71964, Date of Issue:
September 5, 2014
| LAND ROVER: | Discovery 4/L319, Range Rover/L405, Range Rover Sport/L494 |
| CATEGORY: | Driveline |
SERVICE INFORMATION
Symptom 508000 Transfer Case Concerns
Attachments Transfer Case Leak.pdf (Transfer%20Case%20Leak.pdf)
ISSUE
Content
Oil Leaking from the transfer case at the mating face.
CAUSE
Unknown currently under engineering investigation.
ACTION

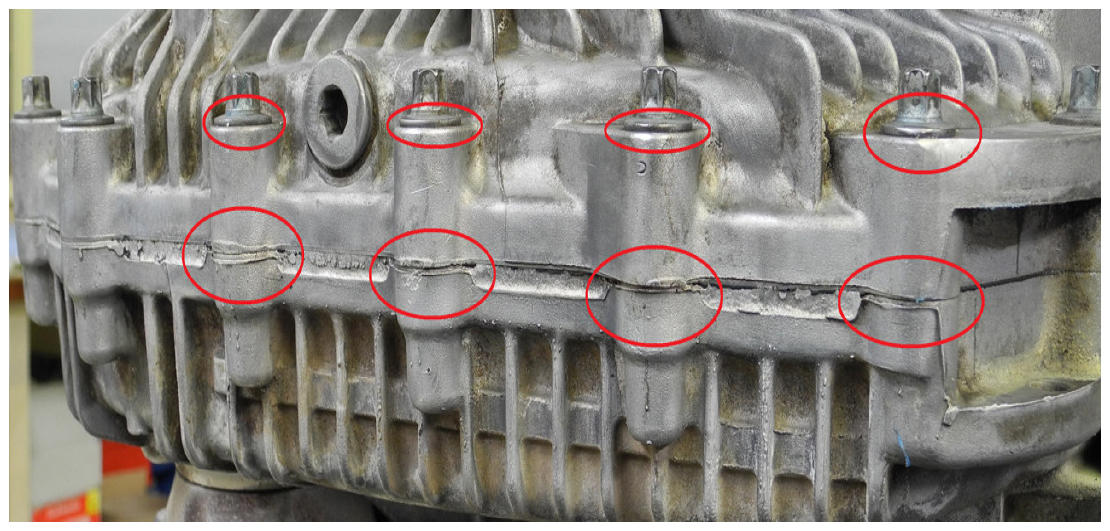

JLR engineering are investigating oil leaks applicable to Magna transfer cases specific to the mating face. If you have a vehicle exhibiting a leak from the area as shown in the attached photograph, please first ensure:
- There are no previous claims relating to the transfer case where the unit could have been opened.
- The output flanges, input shaft seal and associated interfaces are dry (no evidence of a leak in these areas).
If a vehicle is identified, matching the criteria detailed in this SSM, please contact Andre Gasparini on +44 (0)7423 647750 for further instruction as an engineering visit may be required.
